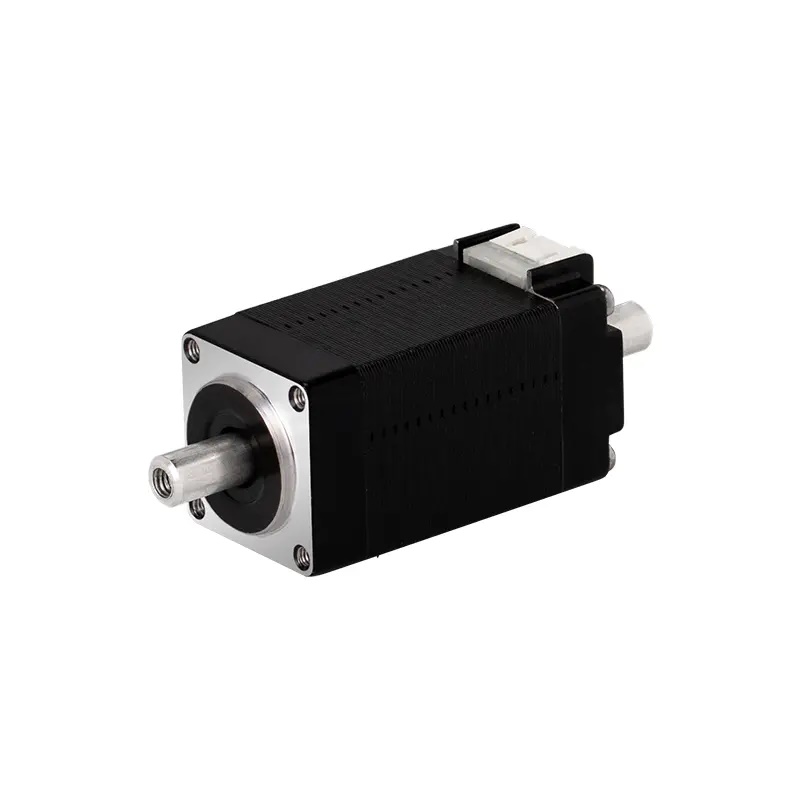

KST-20D25-E-0004 Guangdong Kaifull Electronics Technology Co., Ltd.
Виробник: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: Discover the KST-20D25-E-0004, a
Steps per Revolution: 200.0
Coil Resistance: 12.5 Ohms
Current Rating (Amps): 500 mA
Length - Shaft and Bearing: 0.787" (20.00mm)
Mounting Hole Spacing: 0.606" (15.40mm)
Diameter - Shaft: 0.157" (4.00mm)
Coil Type: Bipolar
Torque - Holding (oz-in / mNm): 2.83 / 20
Step Angle: 1.8°
Termination Style: Wire Leads with Connector
Type: Hybrid
Size / Dimension: Square - 0.787" x 0.787" (20.00mm x 20.00mm)
Voltage - Rated: 24VDC
Features: Round Shaft
Packaging: Case
Відгуки про товар
Написати відгук
Технічний опис KST-20D25-E-0004 Guangdong Kaifull Electronics Technology Co., Ltd.
Description: Discover the KST-20D25-E-0004, a, Steps per Revolution: 200.0, Coil Resistance: 12.5 Ohms, Current Rating (Amps): 500 mA, Length - Shaft and Bearing: 0.787" (20.00mm), Mounting Hole Spacing: 0.606" (15.40mm), Diameter - Shaft: 0.157" (4.00mm), Coil Type: Bipolar, Torque - Holding (oz-in / mNm): 2.83 / 20, Step Angle: 1.8°, Termination Style: Wire Leads with Connector, Type: Hybrid, Size / Dimension: Square - 0.787" x 0.787" (20.00mm x 20.00mm), Voltage - Rated: 24VDC, Features: Round Shaft, Packaging: Case.
