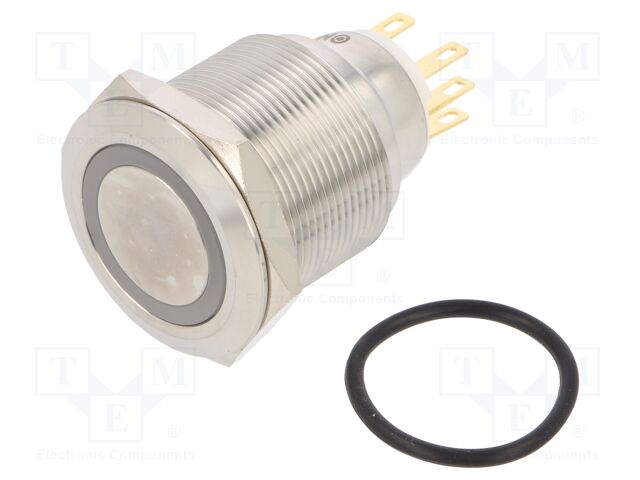

LAS1GQ25-11ZE/B/12V/S ONPOW
Виробник: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Manufacturer series: LAS1GQ22
Leads: connectors
Button shape: flat
IP rating: IP65
Illumination: LED; ring
Switching method: ON-ON
Ring shape: rounded
Body colour: silver
Actuator colour: silver
Contact material: silver alloy
Contacts configuration: SPDT
Body material: stainless steel
Type of switch: vandal resistant
Operating temperature: -25...55°C
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø25mm
Max. contact resistance:: 50mΩ
Stable positions number: 2
Number of positions: 2
AC contacts rating @R: 3A / 220V AC
Operating Force: 4N
DC contacts rating @R: 5A / 24V DC
Illumination voltage: 12V
Test voltage: 1.5kV
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Min. insulation resistance: 1GΩ
Backlight colour: blue
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Manufacturer series: LAS1GQ22
Leads: connectors
Button shape: flat
IP rating: IP65
Illumination: LED; ring
Switching method: ON-ON
Ring shape: rounded
Body colour: silver
Actuator colour: silver
Contact material: silver alloy
Contacts configuration: SPDT
Body material: stainless steel
Type of switch: vandal resistant
Operating temperature: -25...55°C
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø25mm
Max. contact resistance:: 50mΩ
Stable positions number: 2
Number of positions: 2
AC contacts rating @R: 3A / 220V AC
Operating Force: 4N
DC contacts rating @R: 5A / 24V DC
Illumination voltage: 12V
Test voltage: 1.5kV
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Min. insulation resistance: 1GΩ
Backlight colour: blue
на замовлення 4 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1008.55 грн |
| 2+ | 645.87 грн |
| 4+ | 610.43 грн |
Відгуки про товар
Написати відгук
Технічний опис LAS1GQ25-11ZE/B/12V/S ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65, Manufacturer series: LAS1GQ22, Leads: connectors, Button shape: flat, IP rating: IP65, Illumination: LED; ring, Switching method: ON-ON, Ring shape: rounded, Body colour: silver, Actuator colour: silver, Contact material: silver alloy, Contacts configuration: SPDT, Body material: stainless steel, Type of switch: vandal resistant, Operating temperature: -25...55°C, Leads dimensions: 2.8x0.5mm, Mounting hole diameter: Ø25mm, Max. contact resistance:: 50mΩ, Stable positions number: 2, Number of positions: 2, AC contacts rating @R: 3A / 220V AC, Operating Force: 4N, DC contacts rating @R: 5A / 24V DC, Illumination voltage: 12V, Test voltage: 1.5kV, Electrical life: 50000 cycles, Mechanical durability: 1000000 cycles, Min. insulation resistance: 1GΩ, Backlight colour: blue, кількість в упаковці: 1 шт.
Інші пропозиції LAS1GQ25-11ZE/B/12V/S за ціною від 732.51 грн до 1210.26 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LAS1GQ25-11ZE/B/12V/S | Виробник : ONPOW |
Category: Push Button Switches Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65 Manufacturer series: LAS1GQ22 Leads: connectors Button shape: flat IP rating: IP65 Illumination: LED; ring Switching method: ON-ON Ring shape: rounded Body colour: silver Actuator colour: silver Contact material: silver alloy Contacts configuration: SPDT Body material: stainless steel Type of switch: vandal resistant Operating temperature: -25...55°C Leads dimensions: 2.8x0.5mm Mounting hole diameter: Ø25mm Max. contact resistance:: 50mΩ Stable positions number: 2 Number of positions: 2 AC contacts rating @R: 3A / 220V AC Operating Force: 4N DC contacts rating @R: 5A / 24V DC Illumination voltage: 12V Test voltage: 1.5kV Electrical life: 50000 cycles Mechanical durability: 1000000 cycles Min. insulation resistance: 1GΩ Backlight colour: blue кількість в упаковці: 1 шт |
на замовлення 4 шт: термін постачання 14-21 дні (днів) |
|
