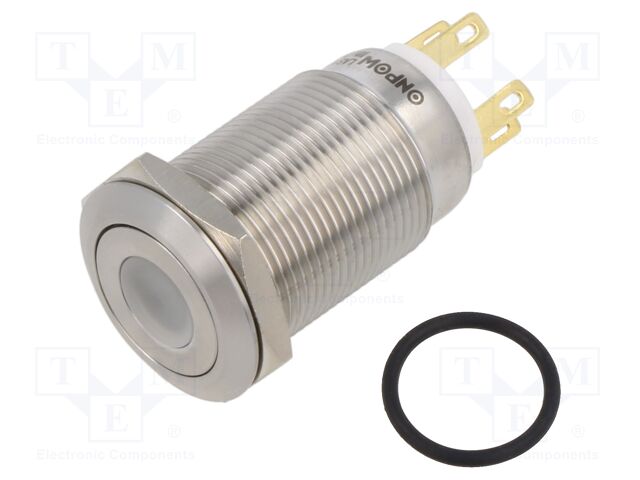

LAS1GQF-11ZD/G/24V/S ONPOW
Виробник: ONPOWCategory: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65
Body material: stainless steel
Operating temperature: -25...55°C
Button shape: flat
IP rating: IP65
Illumination: LED; ring
Switching method: ON-ON
Ring shape: rounded
Actuator colour: silver
Body colour: silver
Type of switch: vandal resistant
Leads dimensions: 2.8x0.5mm
Mounting hole diameter: Ø19mm
Max. contact resistance:: 50mΩ
Number of positions: 2
Stable positions number: 2
AC contacts rating @R: 3A / 220V AC
Operating Force: 4N
DC contacts rating @R: 5A / 24V DC
Illumination voltage: 24V
Test voltage: 1.5kV
Electrical life: 50000 cycles
Mechanical durability: 1000000 cycles
Contacts configuration: SPDT
Min. insulation resistance: 1GΩ
Related items: M12-19F
Contact material: silver alloy
Backlight colour: green
Manufacturer series: LAS1GQ
Leads: connectors
на замовлення 5 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 763.73 грн |
| 5+ | 642.04 грн |
Відгуки про товар
Написати відгук
Технічний опис LAS1GQF-11ZD/G/24V/S ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65, Body material: stainless steel, Operating temperature: -25...55°C, Button shape: flat, IP rating: IP65, Illumination: LED; ring, Switching method: ON-ON, Ring shape: rounded, Actuator colour: silver, Body colour: silver, Type of switch: vandal resistant, Leads dimensions: 2.8x0.5mm, Mounting hole diameter: Ø19mm, Max. contact resistance:: 50mΩ, Number of positions: 2, Stable positions number: 2, AC contacts rating @R: 3A / 220V AC, Operating Force: 4N, DC contacts rating @R: 5A / 24V DC, Illumination voltage: 24V, Test voltage: 1.5kV, Electrical life: 50000 cycles, Mechanical durability: 1000000 cycles, Contacts configuration: SPDT, Min. insulation resistance: 1GΩ, Related items: M12-19F, Contact material: silver alloy, Backlight colour: green, Manufacturer series: LAS1GQ, Leads: connectors.
