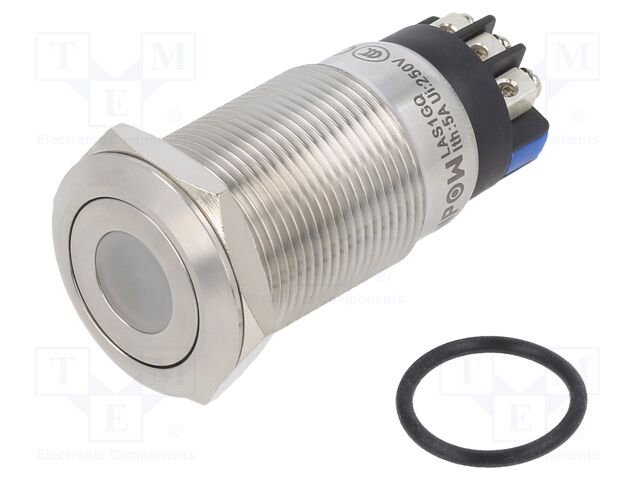

LAS1GQF-11ZD/L/B/24V/S ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 3A/220VAC; 5A/24VDC; IP65, Body material: stainless steel, Operating temperature: -25...55°C, Button shape: flat, IP rating: IP65, Illumination: LED; ring, Switching method: ON-ON, Ring shape: rounded, Actuator colour: silver, Body colour: silver, Type of switch: vandal resistant, Mounting hole diameter: Ø19mm, Max. contact resistance:: 50mΩ, Number of positions: 2, Stable positions number: 2, AC contacts rating @R: 3A / 220V AC, Operating Force: 4N, DC contacts rating @R: 5A / 24V DC, Illumination voltage: 24V, Test voltage: 1.5kV, Electrical life: 50000 cycles, Mechanical durability: 1000000 cycles, Contacts configuration: SPDT, Min. insulation resistance: 1GΩ, Related items: M12-19F, Contact material: silver alloy, Backlight colour: blue, Manufacturer series: LAS1GQ, Leads: screw terminals.
