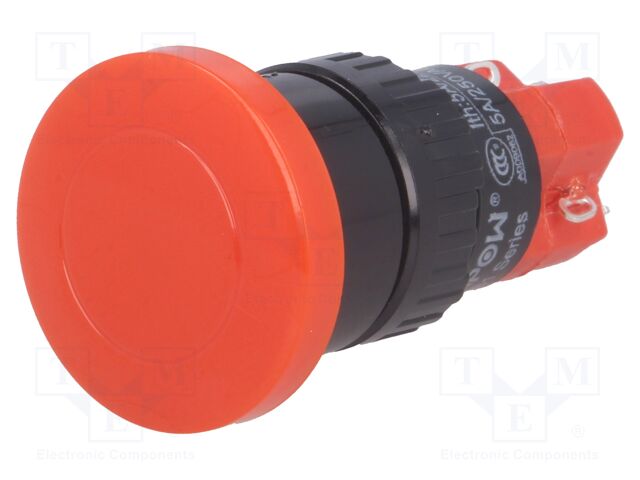

LAS1M-11/R/12V ONPOW

pVersion=0046&contRep=ZT&docId=005056AB281E1FD09BC1CEC6C39D60E1&compId=LAS1M(with%20LED).pdf?ci_sign=c0e190c26c146338cd9d09f9b001d61c29ea909b

Виробник: ONPOW
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPDT; 2A/220VAC; 0.1A/220VDC; ON-(ON)
Type of switch: push-button
Number of positions: 2
Stable positions number: 1
Contacts configuration: SPDT
AC contacts rating @R: 2A / 220V AC
DC contacts rating @R: 0.1A / 220V DC
IP rating: IP40
Switching method: ON-(ON)
Illumination: LED
Backlight colour: red
Illumination voltage: 12V
Leads: for soldering
Electrical life: 50000 cycles
Max. contact resistance:: 50mΩ
Mechanical durability: 1000000 cycles
Button shape: round
Mounting hole diameter: Ø16mm
Body colour: black
Operating temperature: -25...55°C
Panel thickness: max. 6mm
Mounting: on panel
Actuator colour: red
