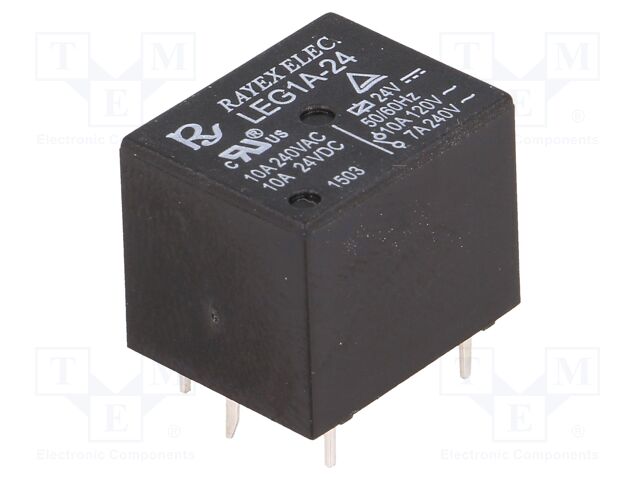

LEG1A-24 Recoy/RAYEX ELECTRONICS

pVersion=0046&contRep=ZT&docId=005056AB752F1EE5A4CF821DA28B011C&compId=LEG-SERIES.pdf?ci_sign=72141a493a873180cc90426df6062ea49f150f80

Виробник: Recoy/RAYEX ELECTRONICS
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 10A
Manufacturer series: LEG
Type of relay: electromagnetic
Relay variant: miniature
Mounting: PCB
Contacts configuration: SPST-NO
Operating temperature: -25...80°C
Terminal pitch: 2mm
Operate time: 8ms
Release time: 8ms
Coil current: 15mA
Body dimensions: 19.5x15.8x15mm
Contact resistance: 100mΩ
Coil power consumption: 360mW
Contact current max.: 10A
DC contacts rating @R: 10A / 24V DC
AC contacts rating @R: 10A / 120V AC
Rated coil voltage: 24V DC
Switched voltage: max. 100V DC; max. 240V AC
Coil resistance: 1.6kΩ
кількість в упаковці: 1 шт

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис LEG1A-24 Recoy/RAYEX ELECTRONICS

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 10A, Manufacturer series: LEG, Type of relay: electromagnetic, Relay variant: miniature, Mounting: PCB, Contacts configuration: SPST-NO, Operating temperature: -25...80°C, Terminal pitch: 2mm, Operate time: 8ms, Release time: 8ms, Coil current: 15mA, Body dimensions: 19.5x15.8x15mm, Contact resistance: 100mΩ, Coil power consumption: 360mW, Contact current max.: 10A, DC contacts rating @R: 10A / 24V DC, AC contacts rating @R: 10A / 120V AC, Rated coil voltage: 24V DC, Switched voltage: max. 100V DC; max. 240V AC, Coil resistance: 1.6kΩ, кількість в упаковці: 1 шт.
