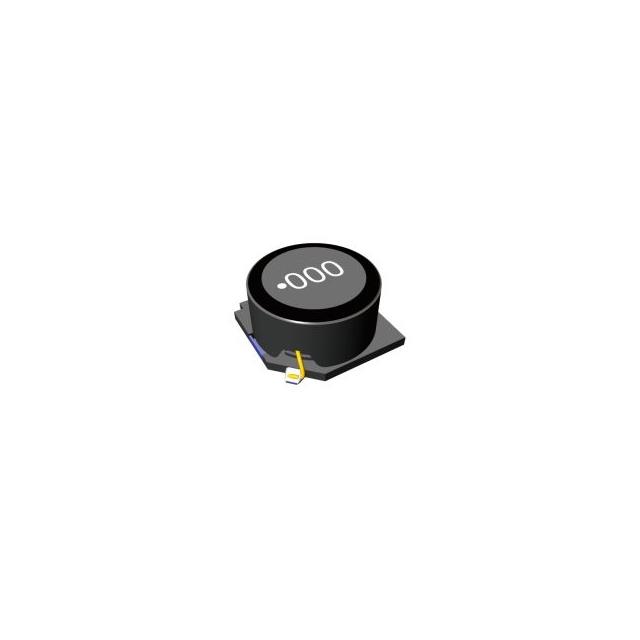

LLRNJ10145GL330MNY Taiyo Yuden
Виробник: Taiyo Yuden
Description: FIXED IND 33UH 2.01A 98.4MOHM SM
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Package / Case: Nonstandard
Size / Dimension: 0.398" L x 0.398" W (10.10mm x 10.10mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Wirewound
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 81.5mOhm
Current - Saturation (Isat): 2.36A
Material - Core: Ferrite
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.191" (4.85mm)
Inductance: 33 µH
Current Rating (Amps): 2.01 A
Description: FIXED IND 33UH 2.01A 98.4MOHM SM
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Package / Case: Nonstandard
Size / Dimension: 0.398" L x 0.398" W (10.10mm x 10.10mm)
Mounting Type: Surface Mount
Shielding: Shielded
Type: Wirewound
Operating Temperature: -40°C ~ 125°C
DC Resistance (DCR): 81.5mOhm
Current - Saturation (Isat): 2.36A
Material - Core: Ferrite
Inductance Frequency - Test: 100 kHz
Height - Seated (Max): 0.191" (4.85mm)
Inductance: 33 µH
Current Rating (Amps): 2.01 A
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис LLRNJ10145GL330MNY Taiyo Yuden
Description: FIXED IND 33UH 2.01A 98.4MOHM SM, Tolerance: ±20%, Packaging: Tape & Reel (TR), Package / Case: Nonstandard, Size / Dimension: 0.398" L x 0.398" W (10.10mm x 10.10mm), Mounting Type: Surface Mount, Shielding: Shielded, Type: Wirewound, Operating Temperature: -40°C ~ 125°C, DC Resistance (DCR): 81.5mOhm, Current - Saturation (Isat): 2.36A, Material - Core: Ferrite, Inductance Frequency - Test: 100 kHz, Height - Seated (Max): 0.191" (4.85mm), Inductance: 33 µH, Current Rating (Amps): 2.01 A.
