M312P

M312P GOSSEN METRAWATT

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB1E01E32CE80DC&compId=GM-M312P_EN_DTE.pdf?ci_sign=30b92061dccf2173897a7c4af7a763ec1e8c49c8 pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB1E01E32CEE0DC&compId=GM-M312P_DE_DTE.pdf?ci_sign=586597e225ba231dcaa314788af5c59a51c67aeb pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB1EA804F6060DC&compId=GM-M312P_EN_INS.pdf?ci_sign=71c2dbe72f8b41121b04cfc092ab00dd534dadce pVersion=0046&contRep=ZT&docId=005056AB281E1EDFBFB1EA804F60C0DC&compId=GM-M312P_DE_INS.pdf?ci_sign=dca257163f932eb0ad812876a7077071a786e690 Виробник: GOSSEN METRAWATT
Category: Meters and AC Clamp Probes

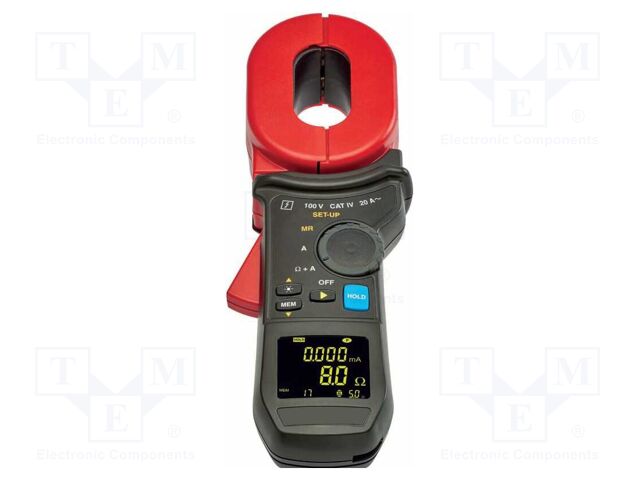

Description: Meter: multifunction; digital,pincers type; OLED; Øcable: 32mm
Type of meter: multifunction
Kind of meter: digital; pincers type
Measuring instrument features: acoustic alarm; automatic power-off; manual HOLD function or automatic PRE-HOLD
Kind of display used: OLED
Max. diameter of measured cable: 32mm
AC current measuring range: 500µA...20A
AC current measuring accuracy: ±(2% + 1 digit)
Resistance measuring range: 10mΩ...1.2kΩ
IP rating: IP40
Body dimensions: 300x106x56mm
Power supply: battery LR6 AA 1,5V x4
Measurement: Ground loop resistance; leakage current
Conform to the norm: CAT III 150V; CAT IV 100V; EN 60529; EN 61010; EN 61326
Operating temperature: -20...55°C
Standard equipment: calibration loop; case; user's manual
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Measurement memory: 300
Resistance measuring accuracy: ±(1.5%+2 digit)
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис M312P GOSSEN METRAWATT

Category: Meters and AC Clamp Probes, Description: Meter: multifunction; digital,pincers type; OLED; Øcable: 32mm, Type of meter: multifunction, Kind of meter: digital; pincers type, Measuring instrument features: acoustic alarm; automatic power-off; manual HOLD function or automatic PRE-HOLD, Kind of display used: OLED, Max. diameter of measured cable: 32mm, AC current measuring range: 500µA...20A, AC current measuring accuracy: ±(2% + 1 digit), Resistance measuring range: 10mΩ...1.2kΩ, IP rating: IP40, Body dimensions: 300x106x56mm, Power supply: battery LR6 AA 1,5V x4, Measurement: Ground loop resistance; leakage current, Conform to the norm: CAT III 150V; CAT IV 100V; EN 60529; EN 61010; EN 61326, Operating temperature: -20...55°C, Standard equipment: calibration loop; case; user's manual, Battery/ rechargeable battery: battery LR6 AA 1,5V x4, Measurement memory: 300, Resistance measuring accuracy: ±(1.5%+2 digit).
