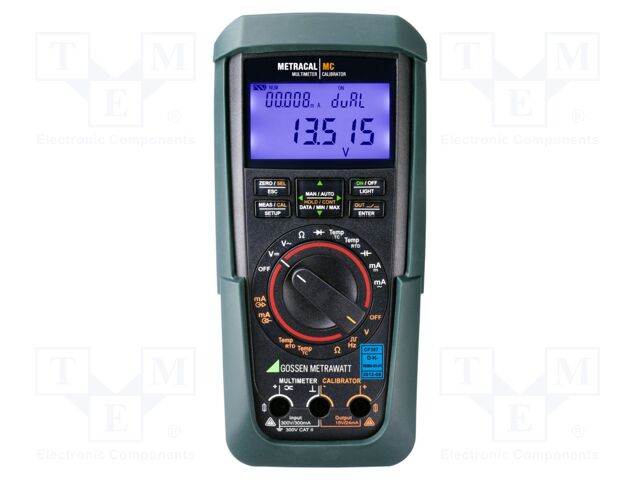

METRACAL MC GOSSEN METRAWATT
Виробник: GOSSEN METRAWATTCategory: Calibrators
Description: Meter: multimeter calibrator; Diode test: 1mA@3.2V; frequency
Type of meter: multimeter calibrator
Measurement: 0-20mA current loop; 0-24mA current loop; 4-20mA current loop; AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: 4,75 digit; (30000)
DC voltage measuring range: 60mV; 300mV; 3V; 30V; 300V
DC voltage measuring accuracy: ±(0.05% + 10 digit)
AC voltage measuring range: 60mV; 300mV; 3V; 30V; 300V
AC voltage measuring accuracy: ±(0.2% + 30 digit)
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Capacitance measuring range: 30nF; 300nF; 3µF; 30µF; 300µF
Capacitance measuring accuracy: ±(1%+ 6 digit)
Resistance measuring accuracy: ±(0.1%+5 digit)
Continuity test: acoustic indication; <300Ω
Power supply: battery LR6 AA 1,5V x2
Standard equipment: calibration certificate DAkkS; carrying strap; holster; test leads ( 3pcs.); user's manual
Conform to the norm: CAT II 600V; EN 61010
Measuring instrument features: dual mode – simultaneous calibration and measurement; frequency generator; HOLD function; MIN/MAX function; operates with thermocouple types: J, K, T, S, B, E, N, L, U, R, Pt100, PT1000, Ni100, Ni1000
Battery/ rechargeable battery: battery LR6 AA 1,5V x2
Dimensions: 200x87x45mm
Additional functions: calibrator; data logger; multimeter; simulator
Kind of calibrator: current; frequency; loop; resistance; RTD; thermocouple; voltage
True effective value measurement: True RMS AC
Producer guarantee (months): 36
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA
Frequency measuring range: 300Hz; 3kHz; 30kHz; 300kHz
Diode test: 1mA @3.2V
Software: LabVIEW
Current source: 0...24mA
Frequency measuring accuracy: ±(0.05%+5 digit)
AC current measuring accuracy: ±(0.015% + 0.005% range); ±(0.5% + 30 digit)
DC current measuring accuracy: ±(0.05% + 15 digit)
IP rating: IP65
Interface: IR (option)
Memory capacity: 16Mb
