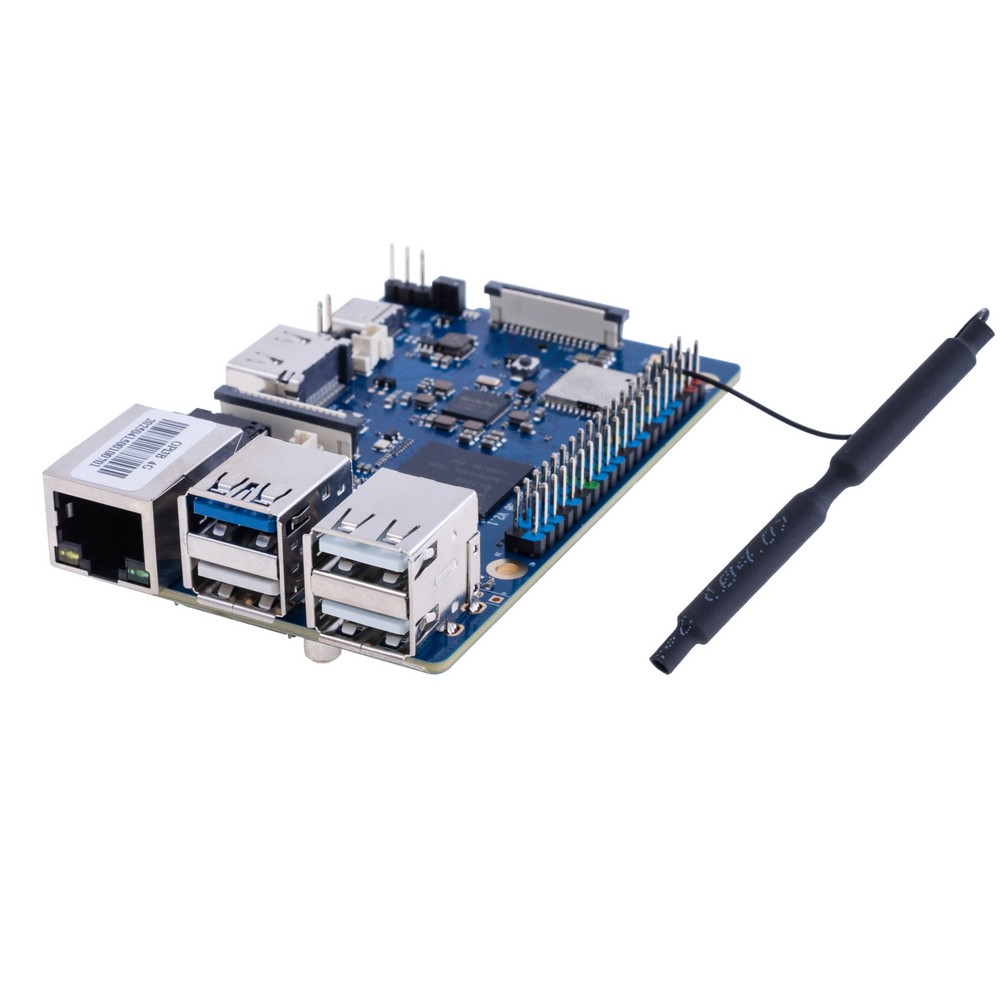

Мікрокомп'ютер Orange Pi 3B 4GB
товару немає в наявності
очікується 50 шт:
50 шт - очікується 01.06.2025
| Кількість | Ціна |
|---|---|
| 1+ | 2260.00 грн |
| 10+ | 2012.50 грн |
Відгуки про товар
Написати відгук
Технічний опис Мікрокомп'ютер Orange Pi 3B 4GB
| SoC | RockchipRK3566 |
| CPU | Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz |
| GPU | • ARM Mali G52 2EE graphics processor • upport OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 • Embedded high performance 2D acceleration hardware |
| NPU | • Integrated RKNN NPU AI accelerator with 0.8Tops@INT8 performance • Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture models |
| VPU | • 4K@60fps H.265/H.264/VP9 video decoding • 1080P@100fps H.265 video encoding • 1080P@60fps H.264 video encoding |
| PMU | RockChip RK809-5 |
| RAM | 2GB/4GB/8GB （LPDDR4/4x） |
| Memory | • Support eMMC module:16GB/32GB/64GB/128GB/256GB • SPI Flash: 16MB/32MB • M.2 M-KEY slot（optional）: SATA3 or PCIe2.0 NVME SSDs • Micro SD slot |
| Wi-Fi+BT | Wi-Fi 5+BT 5.0，BLE（AP6256） |
| Ethernet | 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C-CA ) |
| Video Output | • 1* HDMI TX 2.0 , up to 4K@60fps • 1*MIPI DSI 2 lane • eDP1.3 |
| Camera | 1*MIPI CSI 2 lane camera interface |
| USB | • 1*USB 2.0 support Device or HOST mode • 1*USB 3.0 HOST • 2*USB 2.0 HOST |
| Audio | 3.5mm headphone jack audio in/out |
| Button | 1* MaskROM key, 1* RESET key, 1 *POWER key |
| FAN | 2Pin 1.25mm size 5V fan connector |
| RTC | 2Pin 1.25mm size battery backup connector |
| 40Pin | 40Pin functional expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM |
| Power Source | Type-C 5V3A |
| Supported OS | Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems. |
| PCB Dimension | 56*89mm |
| Weight | 52g |
