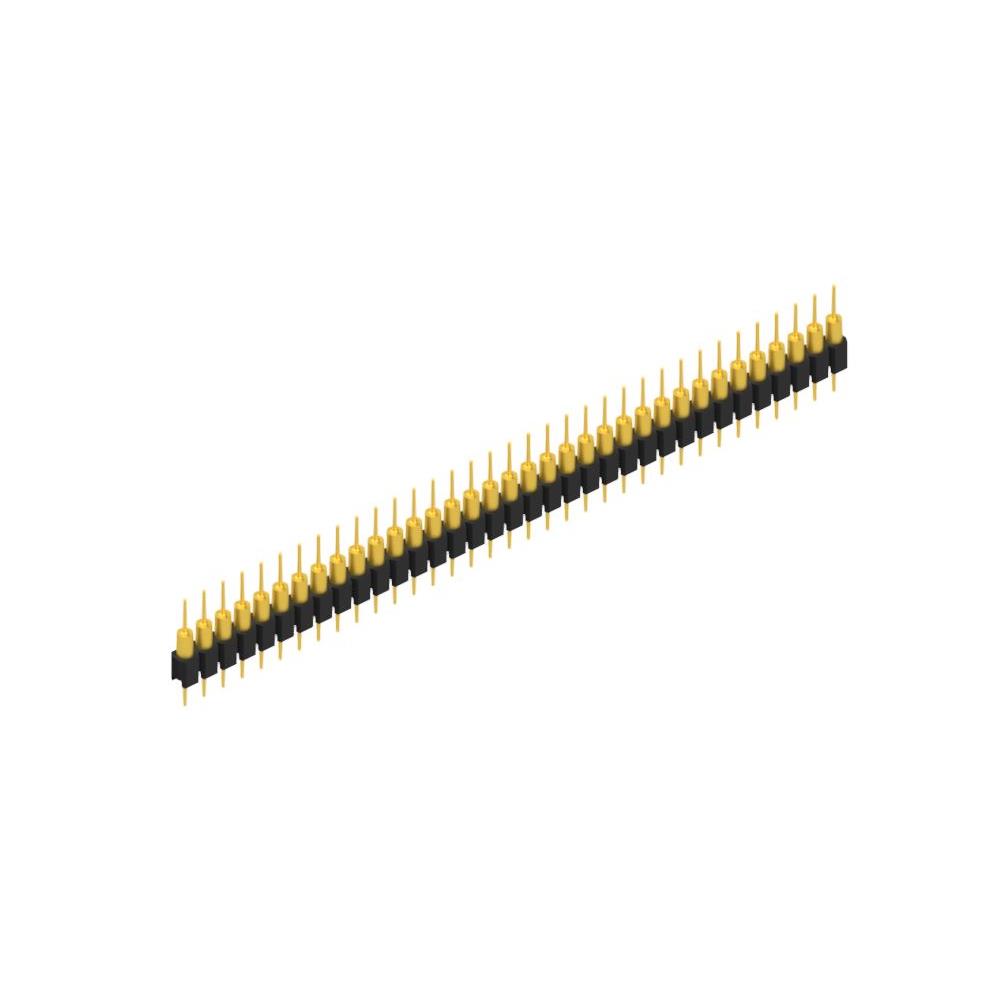

MK 14 X 1 35 G Fischer Elektronik
Виробник: Fischer ElektronikDescription: Solder and plug pins, D0.5 mm
Packaging: Bulk
Features: Parallel PCB Connection
Connector Type: Header
Voltage Rating: 60VDC
Current Rating (Amps): 1.5A
Mounting Type: Through Hole
Number of Positions: 35
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 163°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Zinc
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 7.87µin (0.200µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Shrouding: Unshrouded
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Length - Post: 0.126" (3.20mm)
Insulation Height: 0.130" (3.30mm)
Overall Contact Length: 0.528" (13.40mm)
Contact Length - Mating: 0.165" (4.20mm)
на замовлення 1000 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 10+ | 604.10 грн |
Відгуки про товар
Написати відгук
Технічний опис MK 14 X 1 35 G Fischer Elektronik
Description: Solder and plug pins, D0.5 mm, Packaging: Bulk, Features: Parallel PCB Connection, Connector Type: Header, Voltage Rating: 60VDC, Current Rating (Amps): 1.5A, Mounting Type: Through Hole, Number of Positions: 35, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -40°C ~ 163°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Zinc, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 7.87µin (0.200µm), Contact Finish - Post: Gold, Contact Shape: Circular, Shrouding: Unshrouded, Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled, Contact Length - Post: 0.126" (3.20mm), Insulation Height: 0.130" (3.30mm), Overall Contact Length: 0.528" (13.40mm), Contact Length - Mating: 0.165" (4.20mm).
Інші пропозиції MK 14 X 1 35 G
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| MK14X135G | Виробник : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; pin header; male; PIN: 35; 2.54mm; THT; 1x35 Type of connector: pin strips Connector: pin header Kind of connector: male Number of pins: 35 Contacts pitch: 2.54mm Electrical mounting: THT Connector pinout layout: 1x35 Contact plating: gold-plated Rated voltage: 60V Current rating: 1.5A Flammability rating: UL94V-0 Contact material: brass Body material: polyamide 46 Operating temperature: -40...163°C Kind of package: bulk Overall length: 13.4mm Body colour: black кількість в упаковці: 1 шт |
товару немає в наявності |
||
| MK14X135G | Виробник : FISCHER ELEKTRONIK |
Category: Pin headers Description: Connector: pin strips; pin header; male; PIN: 35; 2.54mm; THT; 1x35 Type of connector: pin strips Connector: pin header Kind of connector: male Number of pins: 35 Contacts pitch: 2.54mm Electrical mounting: THT Connector pinout layout: 1x35 Contact plating: gold-plated Rated voltage: 60V Current rating: 1.5A Flammability rating: UL94V-0 Contact material: brass Body material: polyamide 46 Operating temperature: -40...163°C Kind of package: bulk Overall length: 13.4mm Body colour: black |
товару немає в наявності |
