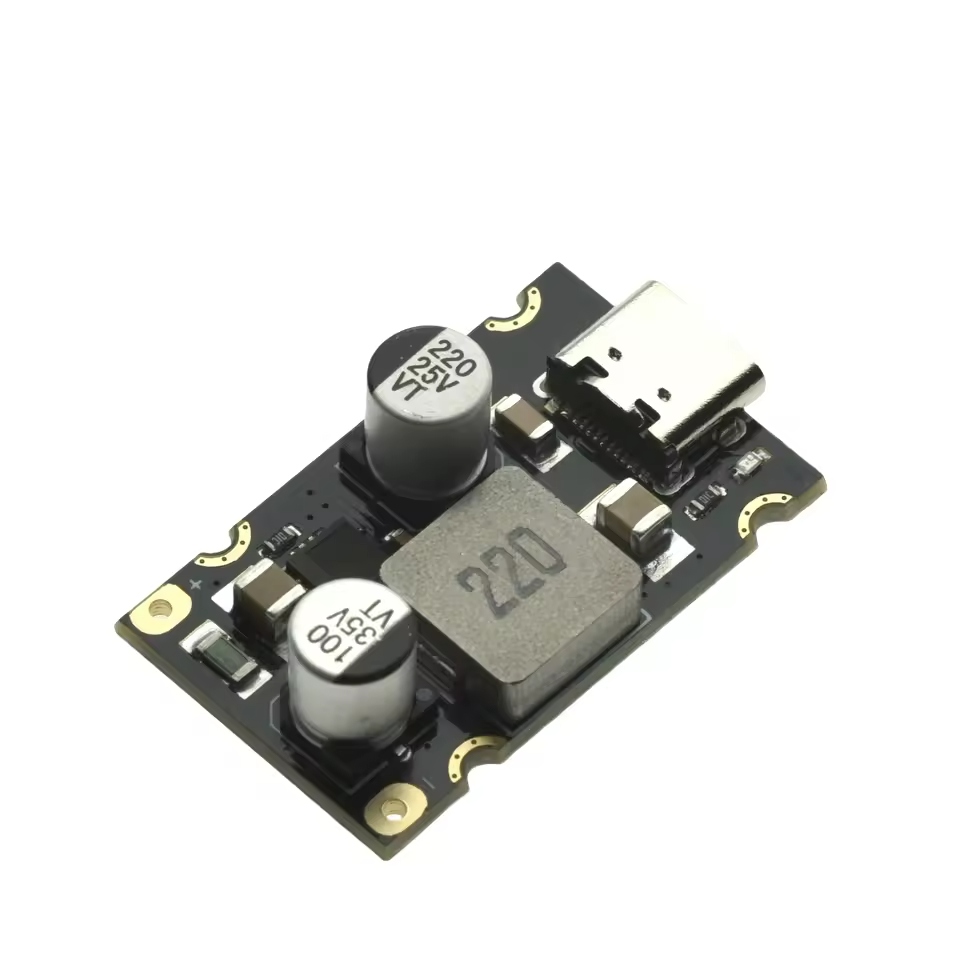

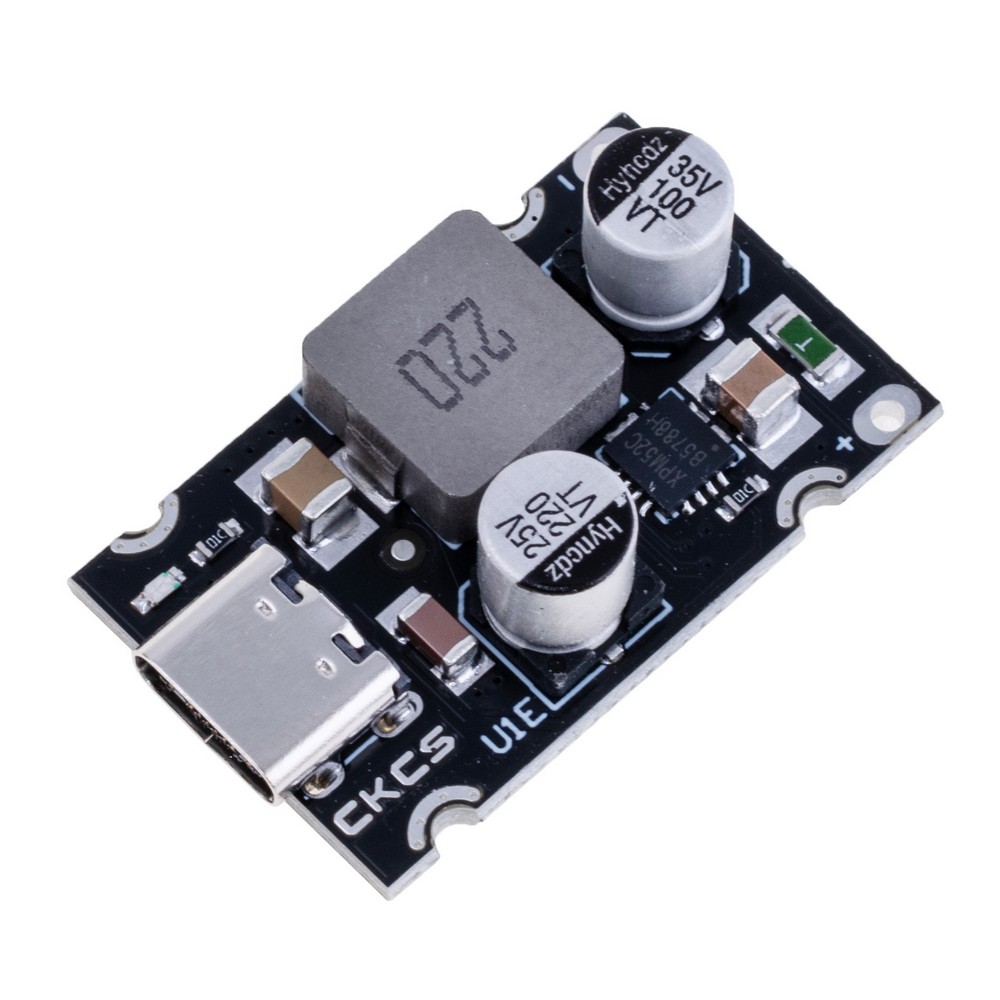

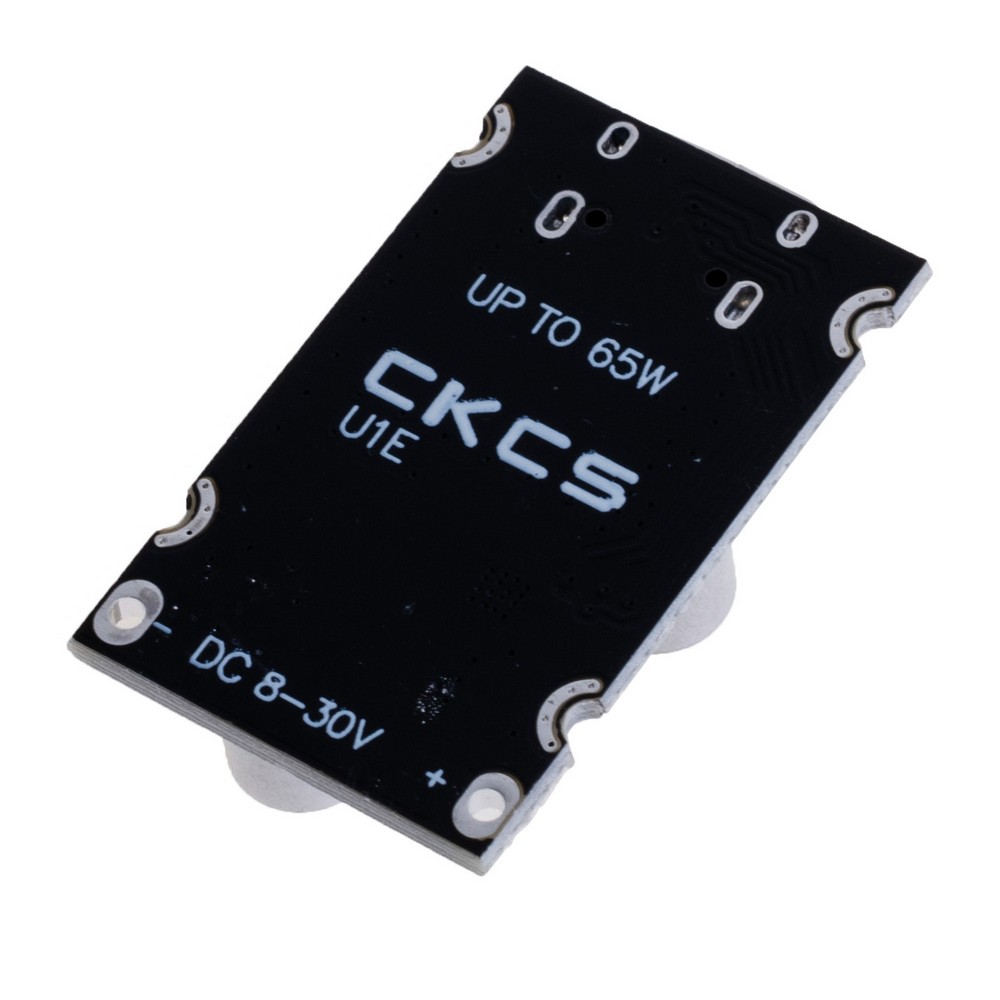

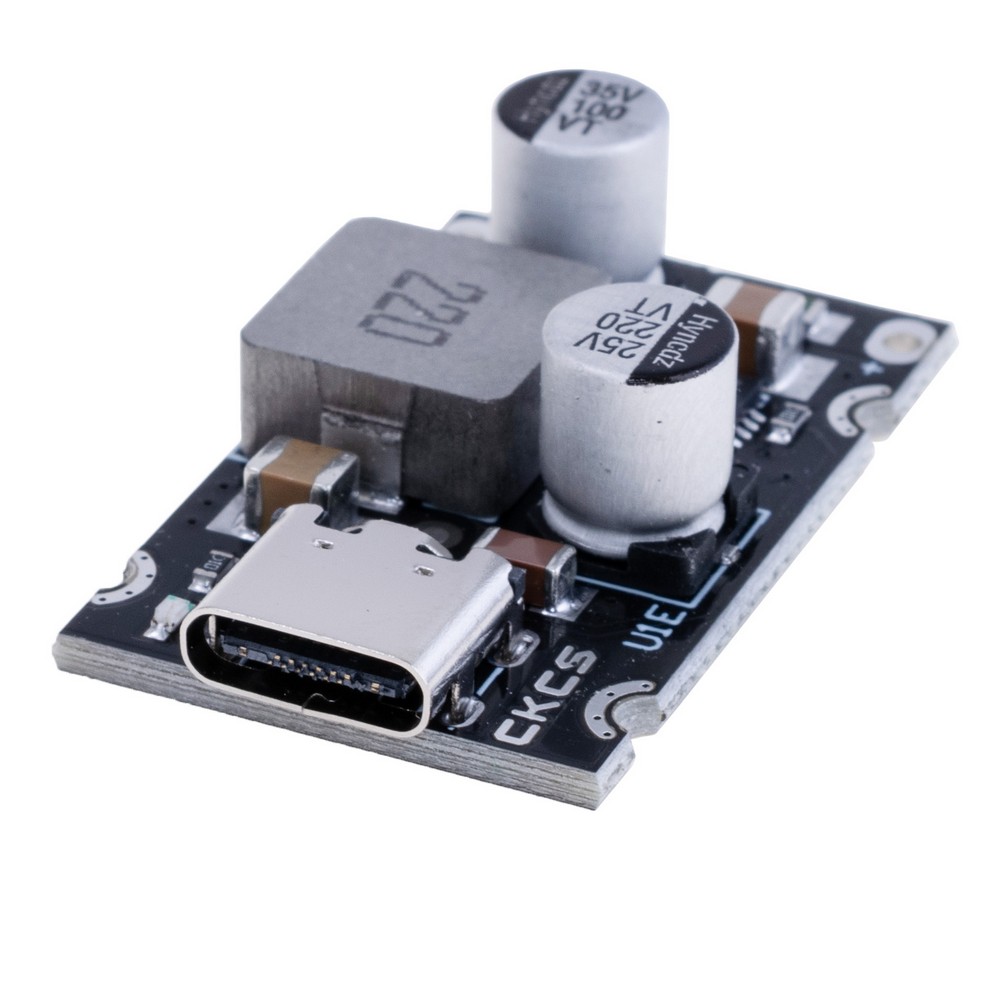

Модуль заряду CKCS PD65W Type-C 32x20x10mm

PD65W fast charge module

Type-C interface PD QCSCP PPS Fast

charge full protocoi charger module

Product features:

Supports PD3.1 (PPS), Qc3.0, and SCP

With protection function, input overvoltage and

undervoltage protection, input overcurrent

protection, output overcurrent short-circuit

protection, overtemperature protection=

Maximum output 20V 3.25A

Input 8~30V(step-down only)

DC type is divided into 5521 and 5525 two kinds,

5521: outer diameter

5.5mm, inner diameter 2.1mm; 5525: Outer

diameter 5.5mm,inner diameter 2.5mm.

Product parameters:

Input voltage :DC8~30V

Output voltage: Automatically adjust at 3.3V~21V

when connected to a TYPE-C compatible receiving

device (input voltage should be higher than output

voltage, if you want to trigger 20V fast charge, input

voltage should be higher than 20v)

Output power: 65w Max (5V3A,9V3A,12V3A,

20V3.25A, etc.)

Max output :20V 3.25A

Conversion efficiency :92%~97%

Output voltage ripple :&lt, 200mV

No-load current :< 3mA

Input overvoltage and undervoltage protection

Input overcurrent protection

Output overcurrent short-circuit protection

Overtemperature protection for the whole machine

Supported charging protocols :PD3.1(PPS), QC3.0,
