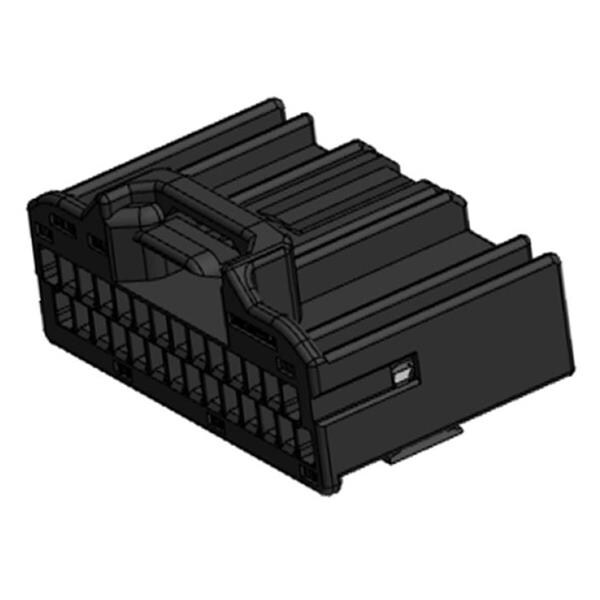

MX84B028NF1 JAE Electronics

Description: CONN HEADER R/A 28POS 2.2MM, Features: Mounting Flange, Packaging: Tube, Connector Type: Header, Current Rating (Amps): 3A, Mounting Type: Through Hole, Right Angle, Number of Positions: 28, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.087" (2.20mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.126" (3.20mm), Insulation Height: 0.626" (15.90mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled, Row Spacing - Mating: 0.118" (3.00mm), Contact Length - Mating: 0.303" (7.70mm).
