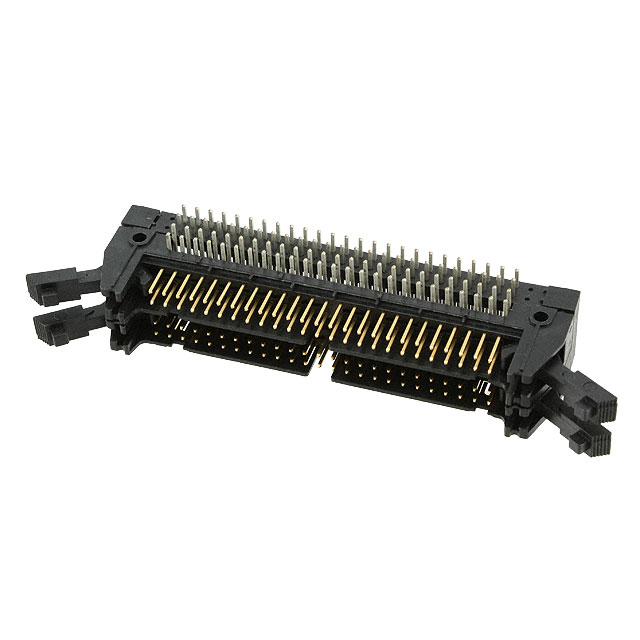

N3433-D302RB 3M

Description: CONN HEADER R/A 50POS 2.54MM, Features: Keying Slot, Mounting Flange, Packaging: Bulk, Connector Type: Header, Stackable (2), Current Rating (Amps): 1A, Mounting Type: Through Hole, Right Angle, Number of Positions: 50, 50, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Long, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.112" (2.84mm), Insulation Height: 0.660" (16.76mm), Shrouding: Shrouded - 3 Wall, Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.240" (6.10mm).
