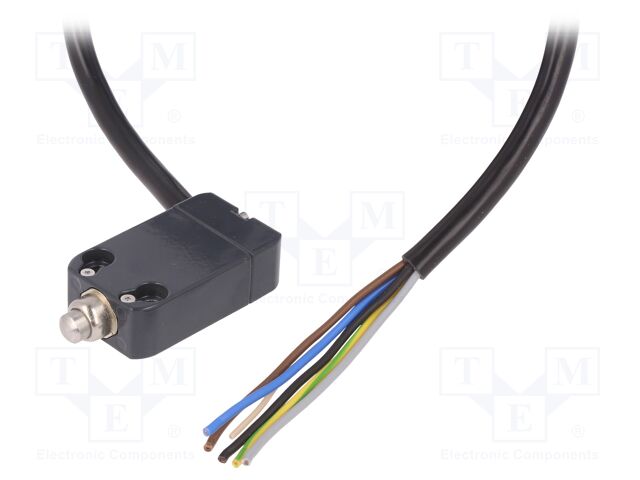

NA B110AB-DN2 PIZZATO ELETTRICA
Виробник: PIZZATO ELETTRICA
Category: Limit Switches
Description: Limit switch; pin plunger Ø8mm; NO + NC; 10A; max.250VAC; cables
Type of sensor: limit switch
Output configuration: NO + NC
Connection: cables
Lead length: 2m
IP rating: IP67
Body dimensions: 39x30x16mm
Operating temperature: -25...80°C
Body material: metal
Switches features: snap action contacts
Contact current max.: 10A
Switched voltage: max. 250V AC; max. 250V DC
Kind of actuator: pin plunger Ø8mm
Mounting holes pitch: 20mm
DC contacts rating @R: 0.3A / 250V DC
Switching frequency max: 1Hz
AC contacts rating @R: 4A / 250V AC
Number of mounting holes: 2
| Кількість | Ціна |
|---|---|
| 1+ | 1871.82 грн |
| 5+ | 1626.50 грн |
| 10+ | 1519.07 грн |
Відгуки про товар
Написати відгук
Технічний опис NA B110AB-DN2 PIZZATO ELETTRICA
Category: Limit Switches, Description: Limit switch; pin plunger Ø8mm; NO + NC; 10A; max.250VAC; cables, Type of sensor: limit switch, Output configuration: NO + NC, Connection: cables, Lead length: 2m, IP rating: IP67, Body dimensions: 39x30x16mm, Operating temperature: -25...80°C, Body material: metal, Switches features: snap action contacts, Contact current max.: 10A, Switched voltage: max. 250V AC; max. 250V DC, Kind of actuator: pin plunger Ø8mm, Mounting holes pitch: 20mm, DC contacts rating @R: 0.3A / 250V DC, Switching frequency max: 1Hz, AC contacts rating @R: 4A / 250V AC, Number of mounting holes: 2.
