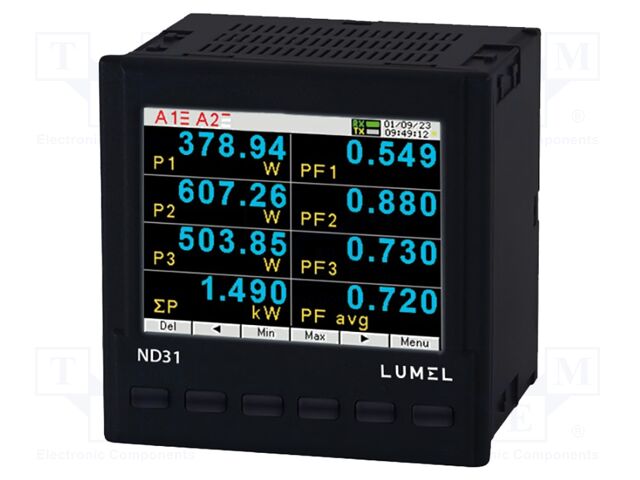

ND31 2222M0 LUMEL
Виробник: LUMELCategory: Power Network Meters and Analyzers
Description: Meter: network parameters; digital,mounting; LCD TFT 3,5"; ND31
Type of meter: network parameters
Interface: Ethernet; RS485
Kind of display used: LCD TFT 3,5"
Display resolution: 320x240
Supply voltage: 20...40V AC; 20...60V DC
IP rating: IP65
Kind of network: 3-wire; 4-wire; single-phase; three-phase
Input current: 1A; 5A
Input voltage: 110/190V; 400/690V
Operating frequency: 45...65Hz
Related items: ATS-100
Accuracy class: 0.2S
Communictions protocol: BACnet/IP; Modbus TCP/IP; MQTT
Manufacturer series: ND31
Measurement: AC current; active power; AC voltage; apparent power; energy; frequency; harmonics; power factor; reactive power; THD
Kind of meter: digital; mounting
Dimensions (W x H x D): 96x96x77mm
Kind of measurement: indirect with 1A current transformer; indirect with 5A current transformer
Software: download from manufacturers website
Mounting: for DIN rail mounting (optional); on panel
Input: Pt 100 x2
Output: analogue; relay x2
Operating temperature: -10...55°C
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис ND31 2222M0 LUMEL
Category: Power Network Meters and Analyzers, Description: Meter: network parameters; digital,mounting; LCD TFT 3,5"; ND31, Type of meter: network parameters, Interface: Ethernet; RS485, Kind of display used: LCD TFT 3,5", Display resolution: 320x240, Supply voltage: 20...40V AC; 20...60V DC, IP rating: IP65, Kind of network: 3-wire; 4-wire; single-phase; three-phase, Input current: 1A; 5A, Input voltage: 110/190V; 400/690V, Operating frequency: 45...65Hz, Related items: ATS-100, Accuracy class: 0.2S, Communictions protocol: BACnet/IP; Modbus TCP/IP; MQTT, Manufacturer series: ND31, Measurement: AC current; active power; AC voltage; apparent power; energy; frequency; harmonics; power factor; reactive power; THD, Kind of meter: digital; mounting, Dimensions (W x H x D): 96x96x77mm, Kind of measurement: indirect with 1A current transformer; indirect with 5A current transformer, Software: download from manufacturers website, Mounting: for DIN rail mounting (optional); on panel, Input: Pt 100 x2, Output: analogue; relay x2, Operating temperature: -10...55°C, кількість в упаковці: 1 шт.
