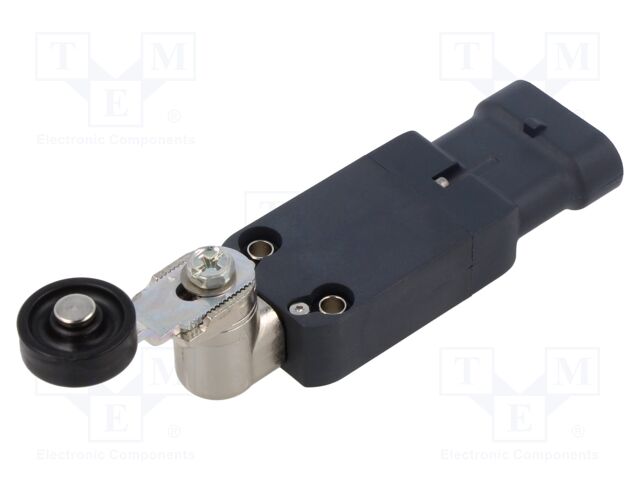

NF B112KG-SAK PIZZATO ELETTRICA
Виробник: PIZZATO ELETTRICA
Category: Limit Switches
Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; IP67; -25÷80°C
Connection: AMP superseal 1.5
IP rating: IP67
Type of sensor: limit switch
Body material: plastic
Output configuration: NO + NC
Switches features: snap action contacts
Operating temperature: -25...80°C
Mounting holes pitch: 20mm
Body dimensions: 39x30x16mm
DC contacts rating @R: 0.3A / 250V DC
Switching frequency max: 1Hz
Number of mounting holes: 2
AC contacts rating @R: 4A / 250V AC
Contact current max.: 10A
Switched voltage: max. 250V AC; max. 250V DC
Kind of actuator: adjustable lever R 35-42mm, plastic roller Ø20mm
Category: Limit Switches
Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; IP67; -25÷80°C
Connection: AMP superseal 1.5
IP rating: IP67
Type of sensor: limit switch
Body material: plastic
Output configuration: NO + NC
Switches features: snap action contacts
Operating temperature: -25...80°C
Mounting holes pitch: 20mm
Body dimensions: 39x30x16mm
DC contacts rating @R: 0.3A / 250V DC
Switching frequency max: 1Hz
Number of mounting holes: 2
AC contacts rating @R: 4A / 250V AC
Contact current max.: 10A
Switched voltage: max. 250V AC; max. 250V DC
Kind of actuator: adjustable lever R 35-42mm, plastic roller Ø20mm
на замовлення 1 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1702.33 грн |
Відгуки про товар
Написати відгук
Технічний опис NF B112KG-SAK PIZZATO ELETTRICA
Category: Limit Switches, Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; IP67; -25÷80°C, Connection: AMP superseal 1.5, IP rating: IP67, Type of sensor: limit switch, Body material: plastic, Output configuration: NO + NC, Switches features: snap action contacts, Operating temperature: -25...80°C, Mounting holes pitch: 20mm, Body dimensions: 39x30x16mm, DC contacts rating @R: 0.3A / 250V DC, Switching frequency max: 1Hz, Number of mounting holes: 2, AC contacts rating @R: 4A / 250V AC, Contact current max.: 10A, Switched voltage: max. 250V AC; max. 250V DC, Kind of actuator: adjustable lever R 35-42mm, plastic roller Ø20mm, кількість в упаковці: 1 шт.
Інші пропозиції NF B112KG-SAK за ціною від 1744.28 грн до 2042.79 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
NF B112KG-SAK | Виробник : PIZZATO ELETTRICA |
Category: Limit Switches Description: Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; IP67; -25÷80°C Connection: AMP superseal 1.5 IP rating: IP67 Type of sensor: limit switch Body material: plastic Output configuration: NO + NC Switches features: snap action contacts Operating temperature: -25...80°C Mounting holes pitch: 20mm Body dimensions: 39x30x16mm DC contacts rating @R: 0.3A / 250V DC Switching frequency max: 1Hz Number of mounting holes: 2 AC contacts rating @R: 4A / 250V AC Contact current max.: 10A Switched voltage: max. 250V AC; max. 250V DC Kind of actuator: adjustable lever R 35-42mm, plastic roller Ø20mm кількість в упаковці: 1 шт |
на замовлення 1 шт: термін постачання 14-21 дні (днів) |
|
