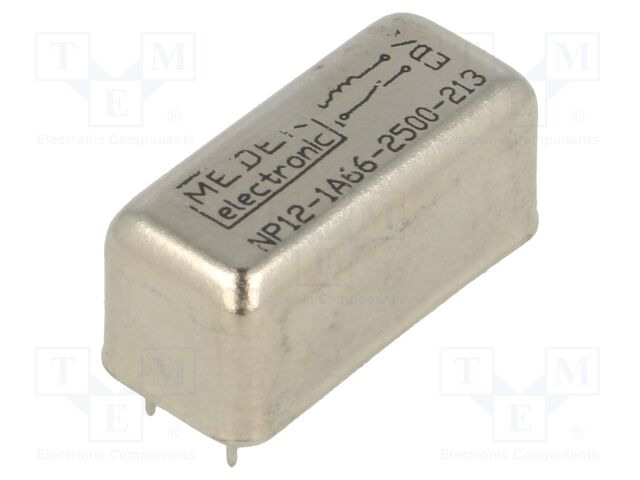

NP12-1A66-2500-213 MEDER
Виробник: MEDERCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1.25A; max.200VDC; 10W
Mounting: PCB
Operating temperature: -20...85°C
Type of relay: reed switch
Contacts configuration: SPST-NO
Release time: 0.1ms
Operate time: 0.5ms
Terminal pitch: 5.08mm
Body dimensions: 22x10.2x10.1mm
Coil power consumption: 60mW
Contact resistance: 0.15Ω
Contact current max.: 1.25A
Switching capacity: 10W
Rated coil voltage: 12V DC
Switched voltage: max. 200V AC; max. 200V DC
Coil resistance: 2.5kΩ
Min. insulation resistance: 10GΩ
Manufacturer series: NP
на замовлення 283 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 4+ | 129.22 грн |
| 6+ | 111.54 грн |
| 48+ | 106.47 грн |
| 96+ | 103.94 грн |
Відгуки про товар
Написати відгук
Технічний опис NP12-1A66-2500-213 MEDER
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 1.25A; max.200VDC; 10W, Mounting: PCB, Operating temperature: -20...85°C, Type of relay: reed switch, Contacts configuration: SPST-NO, Release time: 0.1ms, Operate time: 0.5ms, Terminal pitch: 5.08mm, Body dimensions: 22x10.2x10.1mm, Coil power consumption: 60mW, Contact resistance: 0.15Ω, Contact current max.: 1.25A, Switching capacity: 10W, Rated coil voltage: 12V DC, Switched voltage: max. 200V AC; max. 200V DC, Coil resistance: 2.5kΩ, Min. insulation resistance: 10GΩ, Manufacturer series: NP.
