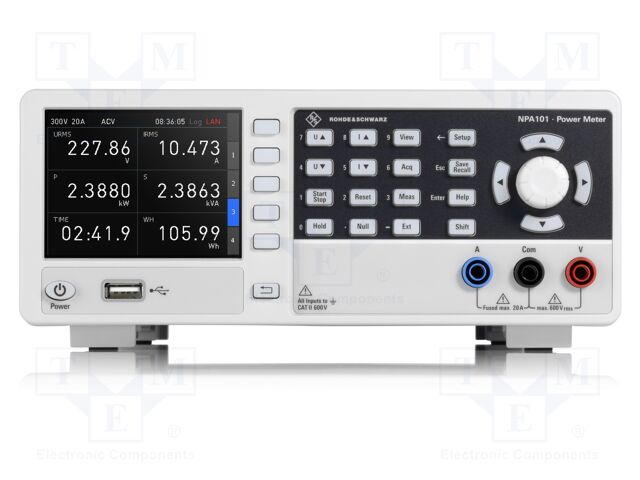

NPA101 ROHDE & SCHWARZ

Category: Power Meters and Analyzers, Description: Meter: power; LCD TFT 3,5"; True RMS; f: 100kHz; I AC: 1mA÷20A; Ch: 1, Kind of display used: LCD TFT 3,5", Number of channels: 1, Dimensions: 222x97x291mm, Interface: LAN; USB, Sampling: 500ksps, Measuring instrument features: energy counter, Supply voltage: 100...230V AC, Measurement accuracy: ±0.05%, Related items: NPA-Z1, True effective value measurement: True RMS, DC current measuring range: 1mA...20A, DC voltage measuring range: 1mV...600V, Input impedance: 2MΩ, Frequency measuring range: 10Hz...100kHz, Measuring range: 50µW...12kW, AC voltage measuring range: 1mV...600V, Frequency measuring accuracy: ±0.1%, Conform to the norm: EN 61010-1; EN 61326-1; UL 61010-1, Type of meter: power, Frequency: 0.1MHz, Measurement: AC current; active power; AC voltage; apparent power; DC current; DC voltage; frequency; harmonics; power factor; reactive power, AC current measuring range: 1mA...20A.
