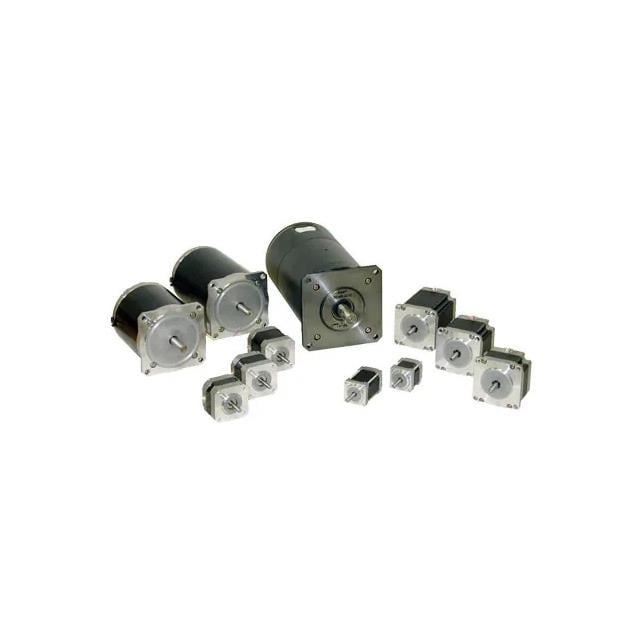

OMHT34-490 Omega

Description: BIPOLAR HIGH TORQUE STEPPER MOTO, Coil Resistance: 1.7 Ohms, Current Rating (Amps): 4.8 A, NEMA Frame Size: 34, Length - Shaft and Bearing: 1.250" (31.75mm), Mounting Hole Spacing: 2.740" (69.60mm), Diameter - Shaft: 0.625" (15.88mm), Coil Type: Bipolar, Torque - Holding (oz-in / mNm): 1845 / 13029, Step Angle: 1.8°, Termination Style: Wire Leads, Operating Temperature: 0°C ~ 100°C, Type: Hybrid, Size / Dimension: Square - 3.386" x 3.386" (86.00mm x 86.00mm), Voltage - Rated: 4.5V, Packaging: Bulk.
