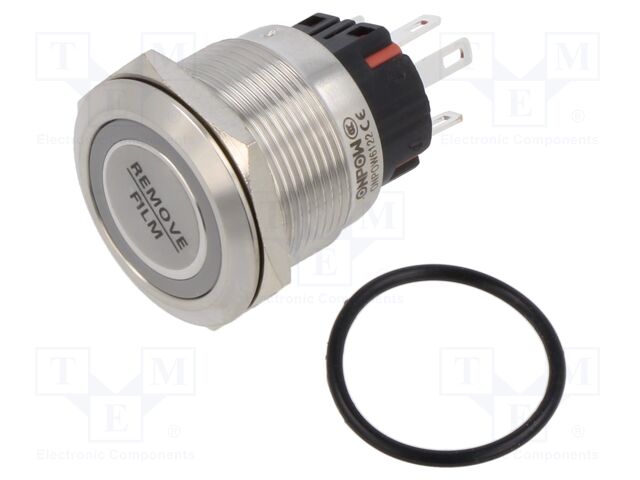

ONPOW6122F-11E/B/24V/S
Виробник: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 1A/220VAC; IP65; ON-(ON)
Leads: connectors
Contact material: silver alloy
Mounting hole dimensions: Ø22mm
Type of switch: vandal resistant
Illumination voltage: 24V
Mechanical durability: 1000000 cycles
Related items: M12-22F; M36-22D
AC contacts rating @R: 1A / 220V AC
Operating temperature: -25...55°C
Button shape: round
Contacts configuration: SPDT
Stable positions number: 1
Operating Force: 2.5N
Body material: stainless steel
Backlight colour: blue
Button material: stainless steel
Switching method: ON-(ON)
Min. insulation resistance: 0.1GΩ
Max. contact resistance:: 50mΩ
Leads dimensions: 2.8x0.5mm
Electrical life: 50000 cycles
Illumination: LED; ring
Number of positions: 2
IP rating: IP65
Відгуки про товар
Написати відгук
Технічний опис ONPOW6122F-11E/B/24V/S ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 1A/220VAC; IP65; ON-(ON), Leads: connectors, Contact material: silver alloy, Mounting hole dimensions: Ø22mm, Type of switch: vandal resistant, Illumination voltage: 24V, Mechanical durability: 1000000 cycles, Related items: M12-22F; M36-22D, AC contacts rating @R: 1A / 220V AC, Operating temperature: -25...55°C, Button shape: round, Contacts configuration: SPDT, Stable positions number: 1, Operating Force: 2.5N, Body material: stainless steel, Backlight colour: blue, Button material: stainless steel, Switching method: ON-(ON), Min. insulation resistance: 0.1GΩ, Max. contact resistance:: 50mΩ, Leads dimensions: 2.8x0.5mm, Electrical life: 50000 cycles, Illumination: LED; ring, Number of positions: 2, IP rating: IP65.
