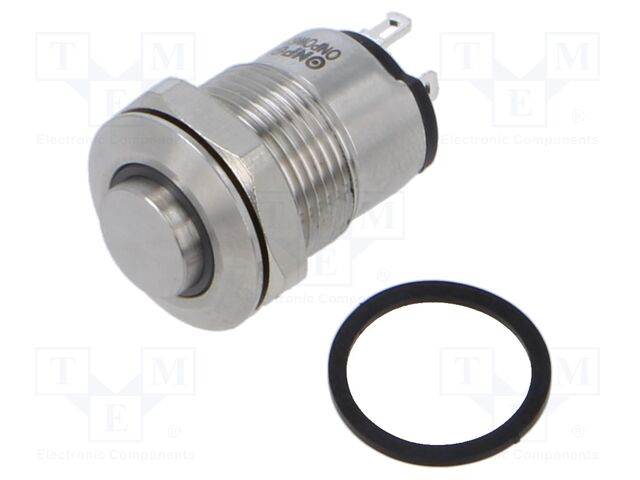

ONPOW6312H-10ZE/J/B/12V/S

ONPOW6312H-10ZE/J/B/12V/S

pVersion=0046&contRep=ZT&docId=005056AB281E1FD09CD1C8D42F0A00E1&compId=ONPOW6312H-10E(WITH%20LED).pdf?ci_sign=6c396a42c3377b4a3ac8fb7bbc814b8ec6ea9e58 Виробник: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-ON
IP rating: IP65
Operating Force: 2.5N
Illumination voltage: 12V
Test voltage: 1.5kV
Electrical life: 50000 cycles
Mechanical durability: 500000 cycles
Backlight colour: blue
Leads: connectors
Button shape: prominent; round
Illumination: LED; ring
Switching method: OFF-ON
Body colour: silver
Contact material: silver alloy
Contacts configuration: SPST-NO
Body material: stainless steel
Type of switch: vandal resistant
Operating temperature: -25...55°C
Leads dimensions: 2x0.5mm
Mounting hole diameter: Ø12mm
Max. contact resistance:: 50mΩ
Number of positions: 2
Stable positions number: 2
DC contacts rating @R: 2A / 36V DC
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис ONPOW6312H-10ZE/J/B/12V/S ONPOW

Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-ON, IP rating: IP65, Operating Force: 2.5N, Illumination voltage: 12V, Test voltage: 1.5kV, Electrical life: 50000 cycles, Mechanical durability: 500000 cycles, Backlight colour: blue, Leads: connectors, Button shape: prominent; round, Illumination: LED; ring, Switching method: OFF-ON, Body colour: silver, Contact material: silver alloy, Contacts configuration: SPST-NO, Body material: stainless steel, Type of switch: vandal resistant, Operating temperature: -25...55°C, Leads dimensions: 2x0.5mm, Mounting hole diameter: Ø12mm, Max. contact resistance:: 50mΩ, Number of positions: 2, Stable positions number: 2, DC contacts rating @R: 2A / 36V DC.
