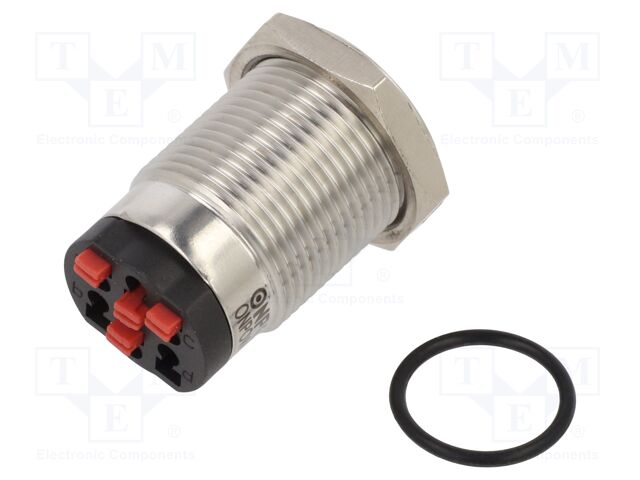

ONPOW6316F-10E/Q/B/24V/S
Виробник: ONPOW
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPST; 10A/24VDC; IP65; OFF-(ON)
Type of switch: vandal resistant
Stable positions number: 1
Number of positions: 2
Leads: quick connect terminal
Contacts configuration: SPST
Mounting hole dimensions: Ø16mm
Mechanical durability: 1000000 cycles
Operating temperature: -25...55°C
Button shape: flat; round
Operating Force: 3N
Body material: stainless steel
Backlight colour: blue
Switching method: OFF-(ON)
Min. insulation resistance: 1GΩ
Max. contact resistance:: 50mΩ
Electrical life: 50000 cycles
Illumination: LED; ring
IP rating: IP65
Contact material: silver alloy
Illumination voltage: 24V
DC contacts rating @R: 10A / 24V DC
Body colour: silver
Відгуки про товар
Написати відгук
Технічний опис ONPOW6316F-10E/Q/B/24V/S ONPOW
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPST; 10A/24VDC; IP65; OFF-(ON), Type of switch: vandal resistant, Stable positions number: 1, Number of positions: 2, Leads: quick connect terminal, Contacts configuration: SPST, Mounting hole dimensions: Ø16mm, Mechanical durability: 1000000 cycles, Operating temperature: -25...55°C, Button shape: flat; round, Operating Force: 3N, Body material: stainless steel, Backlight colour: blue, Switching method: OFF-(ON), Min. insulation resistance: 1GΩ, Max. contact resistance:: 50mΩ, Electrical life: 50000 cycles, Illumination: LED; ring, IP rating: IP65, Contact material: silver alloy, Illumination voltage: 24V, DC contacts rating @R: 10A / 24V DC, Body colour: silver.
