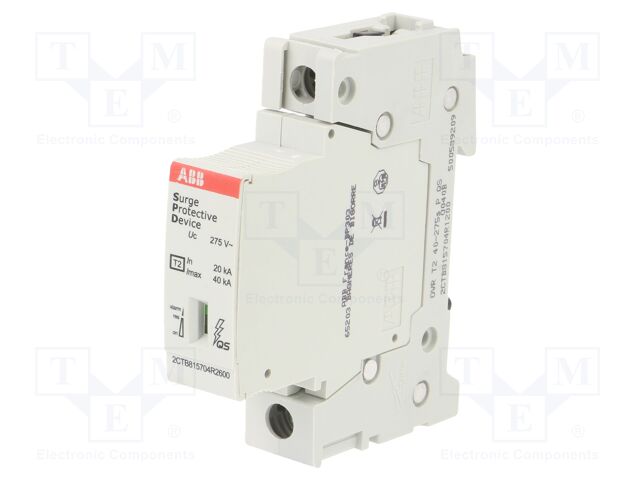

OVR T2 40-275S P QS ABB

pVersion=0046&contRep=ZT&docId=005056AB281E1EDD90951C4C3F3E60D3&compId=OVR_OVR-PV.pdf?ci_sign=0d69cb6623c7e38c34e841a83efc636780d6f4b8

Виробник: ABB
Category: Surge Arresters
Description: Surge arrester; Type 2; Poles: 1; In 8/20us: 40kA; -40÷80°C; IP20
Operating temperature: -40...80°C
IP rating: IP20
Type of protection: surge arrester
Kind of network: TN-C; TN-S; TT
Kind of surge arrester: Type 2
Number of poles: 1
Rated voltage: 230/400V AC
Max. operating voltage: 275V AC
Protection level at rated imp. current: 1.5kV
Rated impulse current In (10/350)µs: 2kA
Rated impulse current In (8/20)µs: 40kA
Surge arresters features: fitted with mechanical indicators of each arrester operation
Mounting: for DIN rail mounting

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис OVR T2 40-275S P QS ABB

Category: Surge Arresters, Description: Surge arrester; Type 2; Poles: 1; In 8/20us: 40kA; -40÷80°C; IP20, Operating temperature: -40...80°C, IP rating: IP20, Type of protection: surge arrester, Kind of network: TN-C; TN-S; TT, Kind of surge arrester: Type 2, Number of poles: 1, Rated voltage: 230/400V AC, Max. operating voltage: 275V AC, Protection level at rated imp. current: 1.5kV, Rated impulse current In (10/350)µs: 2kA, Rated impulse current In (8/20)µs: 40kA, Surge arresters features: fitted with mechanical indicators of each arrester operation, Mounting: for DIN rail mounting.
