Продукція > OWON > OW18A

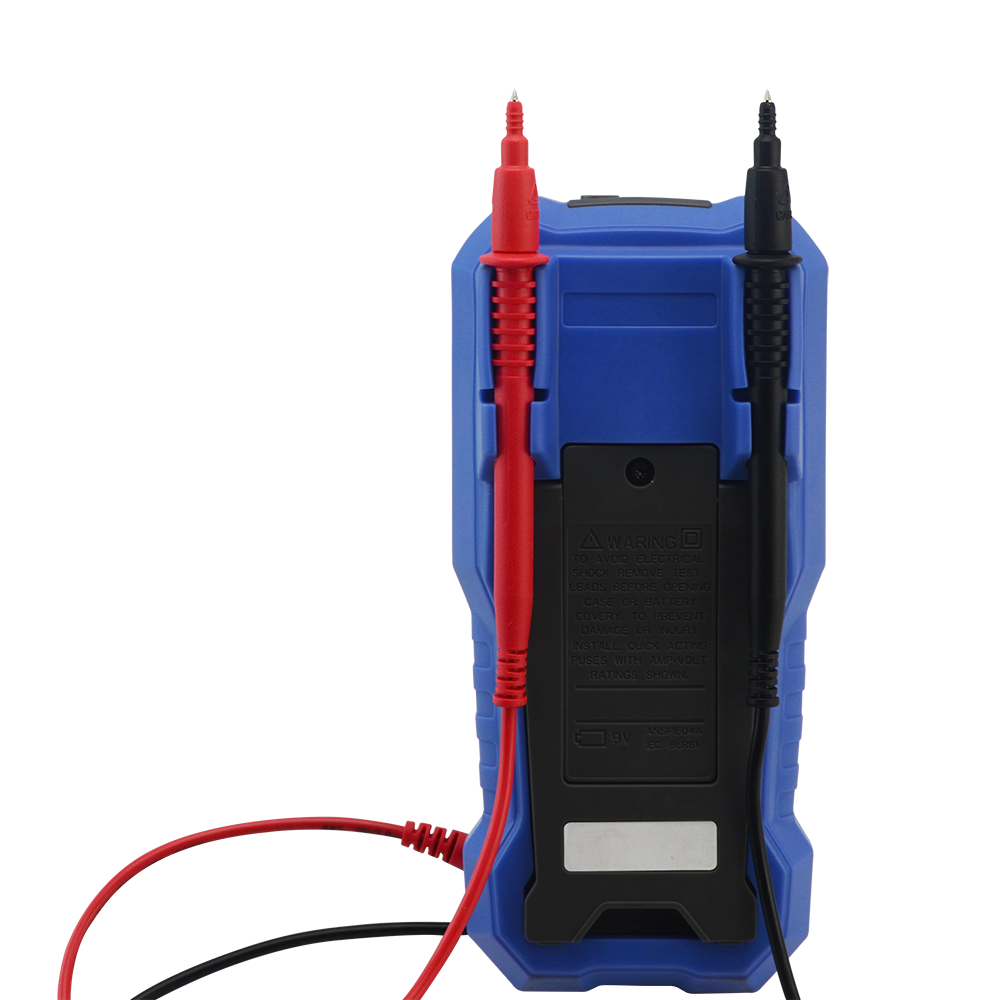

OW18A

OW18A OWON

pVersion=0046&contRep=ZT&docId=005056AB90B41EDB81DED4CF4F2560C7&compId=OW18AB.pdf?ci_sign=d9211996926f2dbe2858469d474157ffebe7540b pVersion=0046&contRep=ZT&docId=005056AB90B41EDC82DD86B6E8EFA0C7&compId=OW18A-manual.pdf?ci_sign=e795e51741b2f7dc3082bc26278dcdaa73930bac Виробник: OWON
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3 5/6 digits; 3x/s; True RMS; -50÷400°C
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; resistance; temperature
Kind of display used: LCD
Display parameters: 3 5/6 digits
Sampling: 3x/s
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 600mV; 6V; 60V; 600V; 750V
AC voltage measuring accuracy: ±(0.8% + 3 digit)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 10A; 20A
DC current measuring accuracy: ±(0.8% + 2 digit)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 10A
AC current measuring accuracy: ±(1% + 3 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF
Capacitance measuring accuracy: ±(3%+ 3 digit)
Frequency measuring range: 9999mHz...9999kHz
Frequency measuring accuracy: ±(0.8%+2 digit)
Temperature measuring range: -50...400°C
Temperature measurement accuracy: ±(2.5% + 3 digit)
Resistance measuring accuracy: ±(0.8%+2 digit)
Test: diodes
Continuity test: acoustic indication; <30Ω
Power supply: battery 6F22 9V x1
Standard equipment: K-type thermocouple; screwdriver; test leads
Conform to the norm: CAT III 1000V; EN 61010
Dimensions (W x H x D): 90x190x56mm
Measuring instrument features: auto and manual ranging; automatic power-off; built-in torch; contactless voltage detector; HOLD function; low battery indicator; REL function
Battery/ rechargeable battery: battery 6F22 9V x1
Illumination: yes
на замовлення 221 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+1694.31 грн
2+1520.41 грн
3+1476.73 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис OW18A OWON

Category: Portable digital multimeters, Description: Digital multimeter; LCD; 3 5/6 digits; 3x/s; True RMS; -50÷400°C, Type of meter: digital multimeter, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; resistance; temperature, Kind of display used: LCD, Display parameters: 3 5/6 digits, Sampling: 3x/s, DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV, DC voltage measuring accuracy: ±(0.5% + 2 digit), AC voltage measuring range: 600mV; 6V; 60V; 600V; 750V, AC voltage measuring accuracy: ±(0.8% + 3 digit), DC current measuring range: 600µA; 6mA; 60mA; 600mA; 10A; 20A, DC current measuring accuracy: ±(0.8% + 2 digit), AC current measuring range: 600µA; 6mA; 60mA; 600mA; 10A, AC current measuring accuracy: ±(1% + 3 digit), True effective value measurement: True RMS, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ, Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF, Capacitance measuring accuracy: ±(3%+ 3 digit), Frequency measuring range: 9999mHz...9999kHz, Frequency measuring accuracy: ±(0.8%+2 digit), Temperature measuring range: -50...400°C, Temperature measurement accuracy: ±(2.5% + 3 digit), Resistance measuring accuracy: ±(0.8%+2 digit), Test: diodes, Continuity test: acoustic indication; .
