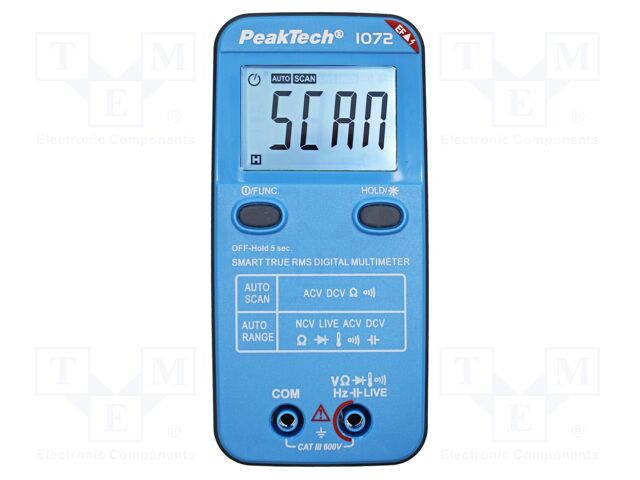

P 1072 PEAKTECH
Виробник: PEAKTECHCategory: Portable digital multimeters
Description: Digital multimeter; LCD; 3,75 digit (3999); True RMS AC
Type of meter: digital multimeter
Kind of display used: LCD
Power supply: battery LR03 AAA 1,5V x2
Conform to the norm: CAT III 600V
Measurement: AC voltage; capacitance; continuity; DC voltage; frequency; resistance; temperature (external probe required)
Standard equipment: K-type thermocouple; test leads; user's manual
Measuring instrument features: automatic measurement of many parameters; low battery indicator
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Test: diodes
Continuity test: acoustic indication; <50Ω
Temperature measuring range: -200...1200°C
True effective value measurement: True RMS AC
Dimensions (W x H x D): 130x63x35mm
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
DC voltage measuring range: 4V; 40V; 400V; 600V
AC voltage measuring range: 4V; 40V; 400V; 600V
Frequency measuring range: 40Hz; 400Hz; 4kHz
Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 1mF
Diode test: 1mA @1.5V
Display parameters: 3,75 digit (3999)
Frequency measuring accuracy: ±(0.5%+3 digit)
Capacitance measuring accuracy: ±(3%+15 digit) @ 0.04µF...1mF; ±(5%+30 digit) @ 4nF
AC current measuring accuracy: ±(1.5% + 3 digit)@4A; ±(2% + 3 digit)@10A
DC voltage measuring accuracy: ±(0.5% + 3 digit)
DC current measuring accuracy: ±(1% + 3 digit) @4A; ±(1.5% + 3 digit) @10A
AC voltage measuring accuracy: ±(1% + 3 digit) @600V; ±(1% + 6 digit) @4V
Resistance measuring accuracy: ±(0.5%+2 digit)@(2kΩ...2MΩ); ±(0.5%+3 digit)@(200Ω); ±(1.5%+3 digit)@(20MΩ)
Temperature measurement accuracy: ±(2% + 3°C)
на замовлення 9 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1286.70 грн |
| 3+ | 1124.05 грн |
