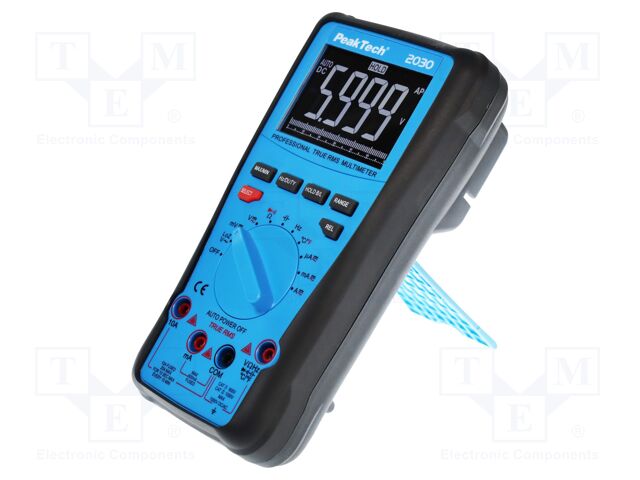

P 2030 PEAKTECH
Виробник: PEAKTECHCategory: Portable digital multimeters
Description: Digital multimeter; LCD; 3,83 digit (6000); Temp: -20÷1000°C
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: 3,83 digit (6000)
DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 3 digit); ±(0.8% + 10 digit) @1kV
AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.8% + 5 digit); ±(1.2% + 10 digit) @1kV
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0.8% + 10 digit) @(600µA...60mA); ±(1.2% + 8 digit) @600mA; ±(2% + 5 digit) @(6A...10A)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
AC current measuring accuracy: ±(1% + 15 digit)@600µA; ±(1% + 15 digit)@6000µA; ±(1% + 15 digit)@60mA; ±(3% + 10 digit)@6A; ±(3% + 10 digit)@10A
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF
Capacitance measuring accuracy: ±(3.5%+ 20 digit); ±(5%+10 digit) @ 600µF...6mF
Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 20MHz
Frequency measuring accuracy: ±(0.5%+4 digit)
Temperature measuring range: -20...1000°C
Resistance measuring accuracy: ±(0.8%+3 digit)@(6kΩ); ±(0.8%+3 digit)@(60kΩ); ±(0.8%+3 digit)@(600kΩ); ±(0.8%+3 digit)@(6MΩ); ±(0.8%+5 digit)@(600Ω); ±(1%+25 digit)@(60MΩ)
Diode test: 0.4mA @2V
Continuity test: acoustic indication; <50Ω
Power supply: battery 6F22 9V x1
Standard equipment: adapter; soft case; test probe x1; thermocouple; user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 201x101x68mm
Measuring instrument features: automatic power-off; HOLD function; MIN/MAX function; overload protection; overvoltage protection
Battery/ rechargeable battery: battery 6F22 9V x1
Temperature measurement accuracy: ±(1% + 50 digit) @(-20°C...620°C); ±(1.5% + 15 digit) @(620°C...1000°C)
на замовлення 5 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 4774.72 грн |
| 3+ | 4374.59 грн |
