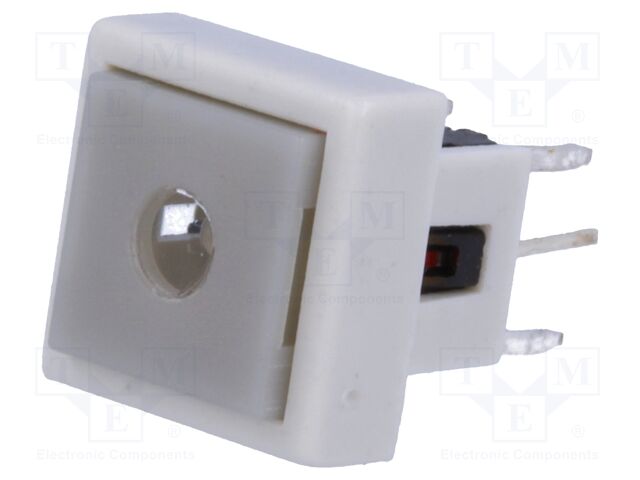

PB6141FL-13 HIGHLY ELECTRIC
Виробник: HIGHLY ELECTRIC
Category: Keypad Switches
Description: Switch: keypad; Pos: 2; SPST-NO; 0.05A/12VDC; white; LED; red/green
Manufacturer series: PB614
Switches features: colour change by changing polarization
Leads: for PCB; straight
Type of switch: keypad
Illumination: LED
Switching method: OFF-(ON)
Mounting: THT
Backlight colour: red/green
Contacts configuration: SPST-NO
Button shape: square
Actuator colour: white
Operating temperature: -20...70°C
Terminal pitch: 5.08x5.08mm
Body dimensions: 7.5x7.5mm
Button height: 10mm
DC contacts rating @R: 50mA / 12V DC
Max. contact resistance:: 100mΩ
Stable positions number: 1
Operating Force: 1.6N
Number of positions: 2
Electrical life: 300000 cycles
Min. insulation resistance: 0.1GΩ
| Кількість | Ціна |
|---|---|
| 7+ | 67.89 грн |
| 8+ | 53.96 грн |
| 20+ | 45.22 грн |
Відгуки про товар
Написати відгук
Технічний опис PB6141FL-13 HIGHLY ELECTRIC
Category: Keypad Switches, Description: Switch: keypad; Pos: 2; SPST-NO; 0.05A/12VDC; white; LED; red/green, Manufacturer series: PB614, Switches features: colour change by changing polarization, Leads: for PCB; straight, Type of switch: keypad, Illumination: LED, Switching method: OFF-(ON), Mounting: THT, Backlight colour: red/green, Contacts configuration: SPST-NO, Button shape: square, Actuator colour: white, Operating temperature: -20...70°C, Terminal pitch: 5.08x5.08mm, Body dimensions: 7.5x7.5mm, Button height: 10mm, DC contacts rating @R: 50mA / 12V DC, Max. contact resistance:: 100mΩ, Stable positions number: 1, Operating Force: 1.6N, Number of positions: 2, Electrical life: 300000 cycles, Min. insulation resistance: 0.1GΩ.
