PCE-PA 8500 HP PCE INSTRUMENTS

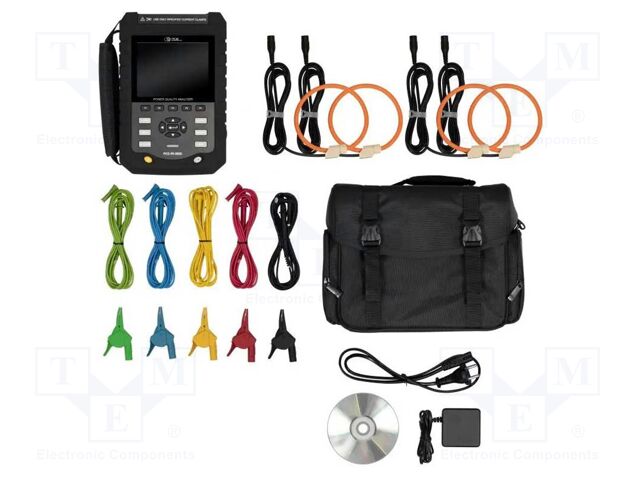

Category: Power Quality Analyzers, Description: Meter: power quality analyser; LCD TFT 2,6"; VAC: 1÷1000V; 8GB, Standard equipment: crocodile clip x5; flexible current probe x4; mains cable; power supply; test lead x5; user's manual, Interface: Ethernet; USB, Software: included, IP rating: IP41, Kind of display used: LCD TFT 2,6", Measuring instrument features: memory built-in, Type of meter: power quality analyser, Power supply: rechargeable battery Ni-MH 7,2V 3,8Ah x1, Battery/ rechargeable battery: rechargeable battery Ni-MH 7,2V 3800mAh x1, Operating temperature: max. 40°C, Storage temperature: -20...60°C, Frequency measuring accuracy: ±0.01 digit, Body dimensions: 260x190x67mm, Voltage measuring resolution: 0.1V DC, DC voltage measuring accuracy: ±0.5%, AC voltage measuring accuracy: ±0.5%, Sampling rate: 1s...60min, DC voltage measuring range: 1...1000V, AC voltage measuring range: 1...1000V, AC current measuring range: 1...1500A, Supply voltage: 220...240V AC, Frequency measuring range: 42.5...57.5Hz; 51...69Hz; 385...414Hz, Memory capacity: 8GB, Kind of network: 3-wire; 4-wire; single-phase; three-phase, Measurement: AC current; AC voltage; DC voltage; electric energy; frequency; harmonics; inrush current; power; power factor, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 50160; IEC 61000-4-7; IEC 61000-4-15; IEC 61000-4-30; IEC 61010-1.
