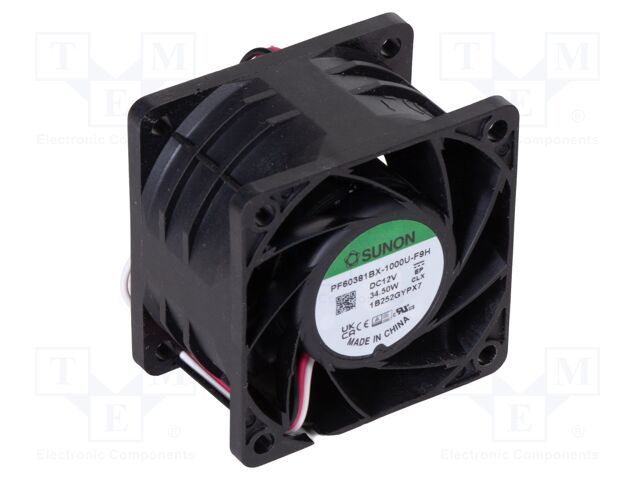

PF60381BX-1000U-F9H SUNON
Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x38mm; 127.8m3/h; 73.1dBA; ball; 24AWG
Enclosure material: thermoplastic
Additional functions: autorestart
Kind of fan: axial
Kind of Bearing: ball
Fan motor: brushless DC
Type of fan: DC
Leads: leads x3
Signal output: R type
Impeller material: thermoplastic
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Fan dimensions: 60x60x38mm
Current rating: 2.5...2.87A
Operating voltage: 7.7...13.2V DC
Supply voltage: 12V DC
Power consumption: 30...34.5W
Wire size: 24AWG
Noise level: 73.1dBA
Fan efficiency: 127.8m3/h
Rotational rate/speed: 16500rpm
Min. insulation resistance: 10MΩ
Insulation class: A
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 60x60x38mm; 127.8m3/h; 73.1dBA; ball; 24AWG
Enclosure material: thermoplastic
Additional functions: autorestart
Kind of fan: axial
Kind of Bearing: ball
Fan motor: brushless DC
Type of fan: DC
Leads: leads x3
Signal output: R type
Impeller material: thermoplastic
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Fan dimensions: 60x60x38mm
Current rating: 2.5...2.87A
Operating voltage: 7.7...13.2V DC
Supply voltage: 12V DC
Power consumption: 30...34.5W
Wire size: 24AWG
Noise level: 73.1dBA
Fan efficiency: 127.8m3/h
Rotational rate/speed: 16500rpm
Min. insulation resistance: 10MΩ
Insulation class: A
на замовлення 190 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1317.77 грн |
| 10+ | 1155.67 грн |
| 50+ | 1095.24 грн |
| 100+ | 1027.26 грн |
Відгуки про товар
Написати відгук
Технічний опис PF60381BX-1000U-F9H SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 60x60x38mm; 127.8m3/h; 73.1dBA; ball; 24AWG, Enclosure material: thermoplastic, Additional functions: autorestart, Kind of fan: axial, Kind of Bearing: ball, Fan motor: brushless DC, Type of fan: DC, Leads: leads x3, Signal output: R type, Impeller material: thermoplastic, Flammability rating: UL94V-0, Operating temperature: -10...70°C, Fan dimensions: 60x60x38mm, Current rating: 2.5...2.87A, Operating voltage: 7.7...13.2V DC, Supply voltage: 12V DC, Power consumption: 30...34.5W, Wire size: 24AWG, Noise level: 73.1dBA, Fan efficiency: 127.8m3/h, Rotational rate/speed: 16500rpm, Min. insulation resistance: 10MΩ, Insulation class: A.
