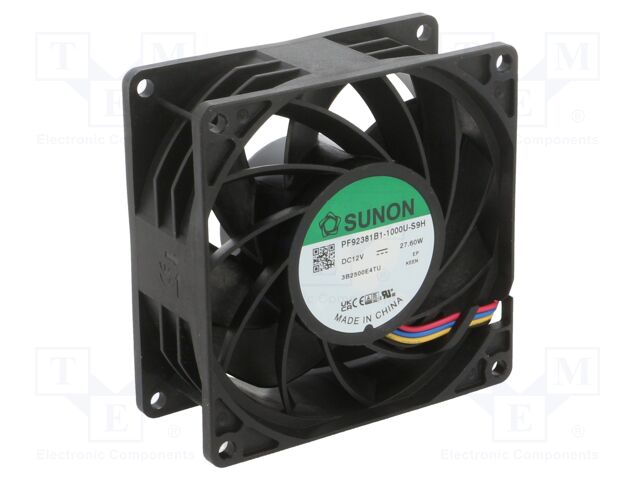

PF92381B1-1000U-S9H SUNON
Виробник: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 92x92x38mm; 235m3/h; 62.9dBA; ball; 9300rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Fan dimensions: 92x92x38mm
Power consumption: 22.2...25.54W
Current rating: 1.85...2.128A
Fan efficiency: 235m3/h
Noise level: 62.9dBA
Kind of Bearing: ball
Rotational rate/speed: 9300rpm
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Leads: leads x4
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Operating voltage: 10.2...13.2V DC
Signal output: F type; PWM
Fan motor: brushless DC
Insulation class: A
Additional functions: autorestart
на замовлення 143 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1545.54 грн |
| 10+ | 1367.16 грн |
| 50+ | 1223.65 грн |
| 100+ | 1110.35 грн |
Відгуки про товар
Написати відгук
Технічний опис PF92381B1-1000U-S9H SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 92x92x38mm; 235m3/h; 62.9dBA; ball; 9300rpm, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Fan dimensions: 92x92x38mm, Power consumption: 22.2...25.54W, Current rating: 1.85...2.128A, Fan efficiency: 235m3/h, Noise level: 62.9dBA, Kind of Bearing: ball, Rotational rate/speed: 9300rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x4, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Operating voltage: 10.2...13.2V DC, Signal output: F type; PWM, Fan motor: brushless DC, Insulation class: A, Additional functions: autorestart.
