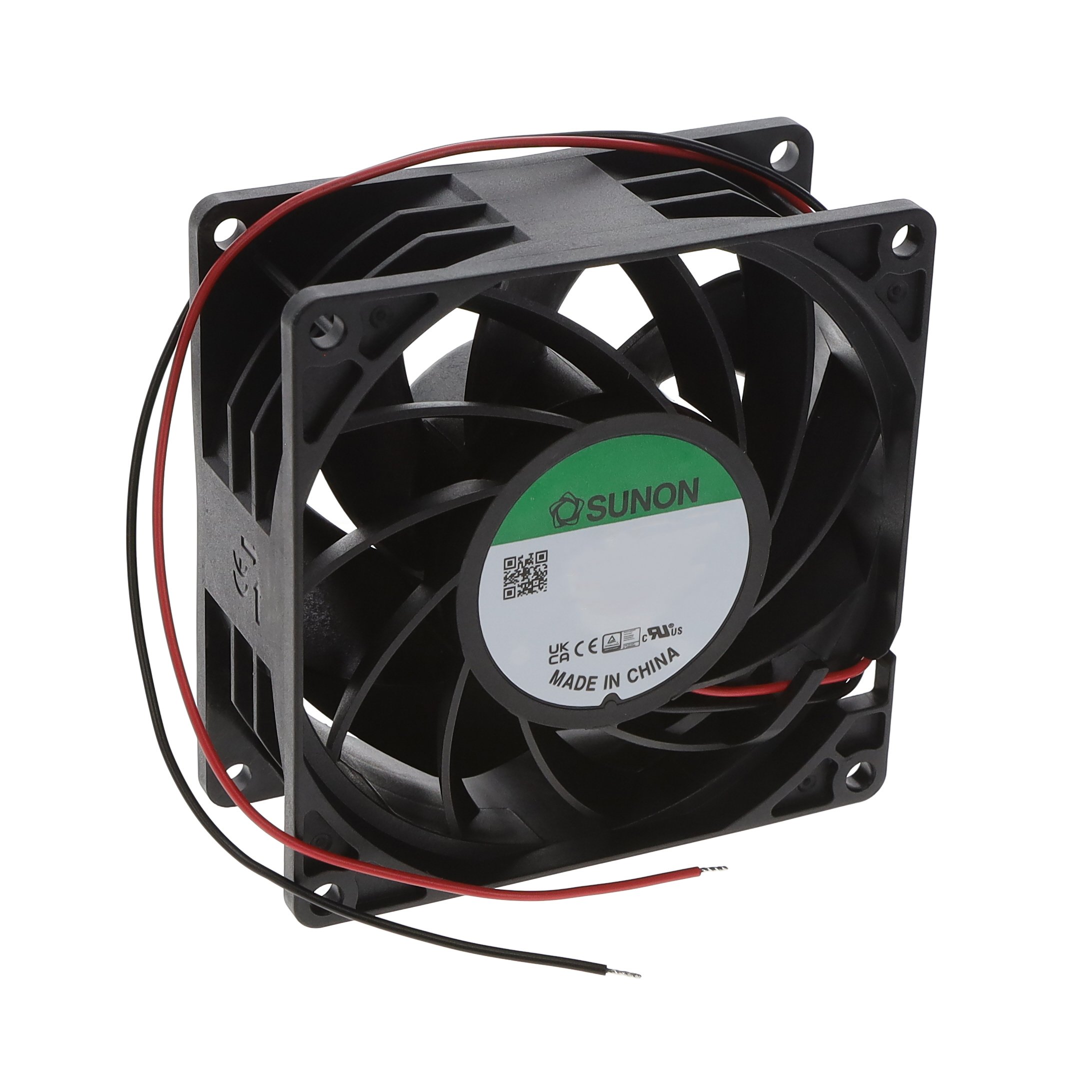

PF92381BX-1000U-A9H Sunon Fans
Виробник: Sunon FansDescription: FAN 60X38MM 12VDC
Packaging: Bulk
Features: Auto Restart
Voltage - Rated: 12VDC
Size / Dimension: Square - 92mm L x 92mm H
Bearing Type: Ball
RPM: 12000 RPM
Air Flow: 182.4 CFM (5.11m³/min)
Width: 38.00mm
Termination: 2 Wire Leads
Approval Agency: CCC, CE, cURus, TUV
Fan Type: Tubeaxial
Noise: 70.2dB(A)
Static Pressure: 2.940 in H2O (732.3 Pa)
Power (Watts): 50.4 W
на замовлення 195 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 2497.25 грн |
| 10+ | 2196.32 грн |
| 25+ | 2112.94 грн |
| 50+ | 1852.47 грн |
| 100+ | 1708.96 грн |
Відгуки про товар
Написати відгук
Технічний опис PF92381BX-1000U-A9H Sunon Fans
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 92x92x38mm; 309.9m3/h; 73.7dBA; ball; 24AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 8...13.2V DC, Fan dimensions: 92x92x38mm, Power consumption: 57.96W, Current rating: 4.83A, Fan efficiency: 309.9m3/h, Noise level: 73.7dBA, Kind of Bearing: ball, Rotational rate/speed: 12000 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Leads: leads x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Insulation class: A, Static pressure: 74.68mm H2O, Wire size: 24AWG, кількість в упаковці: 1 шт.
Інші пропозиції PF92381BX-1000U-A9H
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
| PF92381BX-1000U-A9H | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 92x92x38mm; 309.9m3/h; 73.7dBA; ball; 24AWG Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 8...13.2V DC Fan dimensions: 92x92x38mm Power consumption: 57.96W Current rating: 4.83A Fan efficiency: 309.9m3/h Noise level: 73.7dBA Kind of Bearing: ball Rotational rate/speed: 12000 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Insulation class: A Static pressure: 74.68mm H2O Wire size: 24AWG кількість в упаковці: 1 шт |
товару немає в наявності |
||
| PF92381BX-1000U-A9H | Виробник : Sunon |
DC Fans Axial Fan, 92x92x38mm, 12VDC, Ball, Auto Restart, Low Vibration, D09053140G-00 |
товару немає в наявності |
||
| PF92381BX-1000U-A9H | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 92x92x38mm; 309.9m3/h; 73.7dBA; ball; 24AWG Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 8...13.2V DC Fan dimensions: 92x92x38mm Power consumption: 57.96W Current rating: 4.83A Fan efficiency: 309.9m3/h Noise level: 73.7dBA Kind of Bearing: ball Rotational rate/speed: 12000 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Leads: leads x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Insulation class: A Static pressure: 74.68mm H2O Wire size: 24AWG |
товару немає в наявності |
