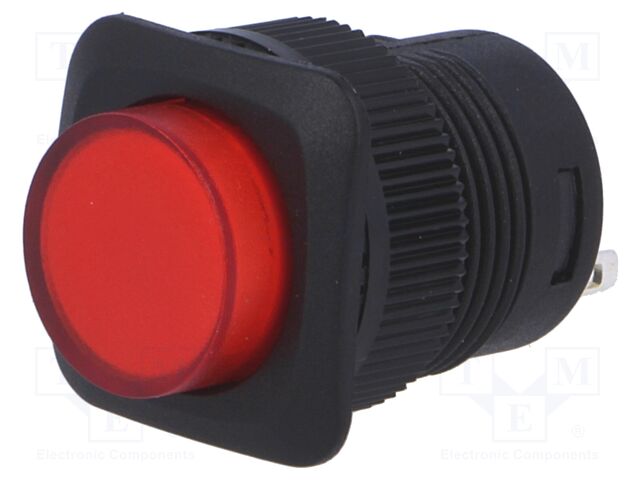

R13-508A-05-BR SCI
Виробник: SCICategory: Standard Switches
Description: Switch: push-button; Pos: 2; SPST-NO; 1.5A/250VAC; OFF-(ON); 1.5kV
Manufacturer series: R13-508
Leads: for soldering
Illumination: none
Switching method: OFF-(ON)
Mounting: on panel
Body material: polyamide
Button shape: prominent; round
Type of switch: push-button
Actuator colour: red
Terminals plating: silver plated
Contacts configuration: SPST-NO
Flammability rating: UL94HB
Operating temperature: -25...70°C
Panel thickness: max. 7mm
Body dimensions: Ø17.5x18mm
Mounting hole diameter: Ø16mm
Max. contact resistance:: 50mΩ
Stable positions number: 1
AC contacts rating @R: 1.5A / 250V AC
Number of positions: 2
AC test voltage: 1.5kV
на замовлення 5 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 5+ | 78.64 грн |
Відгуки про товар
Написати відгук
Технічний опис R13-508A-05-BR SCI
Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPST-NO; 1.5A/250VAC; OFF-(ON); 1.5kV, Manufacturer series: R13-508, Leads: for soldering, Illumination: none, Switching method: OFF-(ON), Mounting: on panel, Body material: polyamide, Button shape: prominent; round, Type of switch: push-button, Actuator colour: red, Terminals plating: silver plated, Contacts configuration: SPST-NO, Flammability rating: UL94HB, Operating temperature: -25...70°C, Panel thickness: max. 7mm, Body dimensions: Ø17.5x18mm, Mounting hole diameter: Ø16mm, Max. contact resistance:: 50mΩ, Stable positions number: 1, AC contacts rating @R: 1.5A / 250V AC, Number of positions: 2, AC test voltage: 1.5kV.
