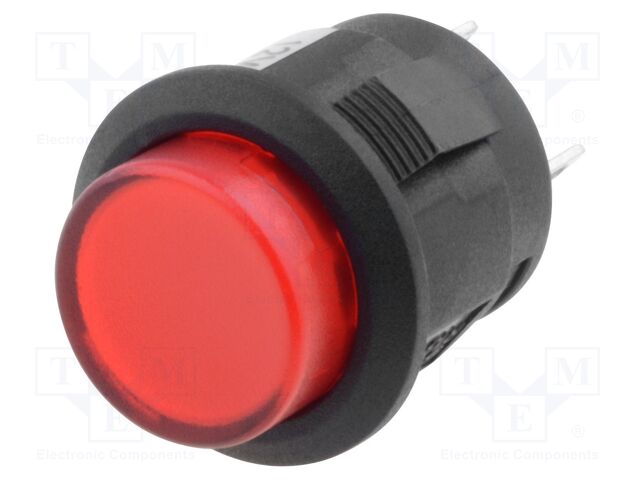

R13-523AL-05-BR-L-1

R13-523AL-05-BR-L-1 SCI

pVersion=0046&contRep=ZT&docId=005056AB281E1EDEB9EC51656EAD00D6&compId=R13-523AL.pdf?ci_sign=37bfb678ea61168ed0d30d20ff6c25e22b2010b0 Виробник: SCI
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPST-NO; 1.5A/250VAC; OFF-(ON); red
Manufacturer series: R13-523
Contacts configuration: SPST-NO
AC contacts rating @R: 1.5A / 250V AC
Operating temperature: -25...70°C
Leads: for soldering
Actuator colour: red
Backlight colour: red
Illumination: LED
Switching method: OFF-(ON)
Mounting: on panel
Enclosure material: PBT
Type of switch: push-button
Button shape: round
Terminals plating: silver plated
Flammability rating: UL94V-2
Panel thickness: max. 3mm
Mounting hole diameter: Ø16mm
Body dimensions: Ø18x13mm
Max. contact resistance:: 50mΩ
Stable positions number: 1
Number of positions: 2
Illumination voltage: 12V DC
AC test voltage: 1.5kV
на замовлення 236 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
4+118.84 грн
5+102.05 грн
20+92.93 грн
100+83.80 грн
Мінімальне замовлення: 4
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис R13-523AL-05-BR-L-1 SCI

Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPST-NO; 1.5A/250VAC; OFF-(ON); red, Manufacturer series: R13-523, Contacts configuration: SPST-NO, AC contacts rating @R: 1.5A / 250V AC, Operating temperature: -25...70°C, Leads: for soldering, Actuator colour: red, Backlight colour: red, Illumination: LED, Switching method: OFF-(ON), Mounting: on panel, Enclosure material: PBT, Type of switch: push-button, Button shape: round, Terminals plating: silver plated, Flammability rating: UL94V-2, Panel thickness: max. 3mm, Mounting hole diameter: Ø16mm, Body dimensions: Ø18x13mm, Max. contact resistance:: 50mΩ, Stable positions number: 1, Number of positions: 2, Illumination voltage: 12V DC, AC test voltage: 1.5kV.
