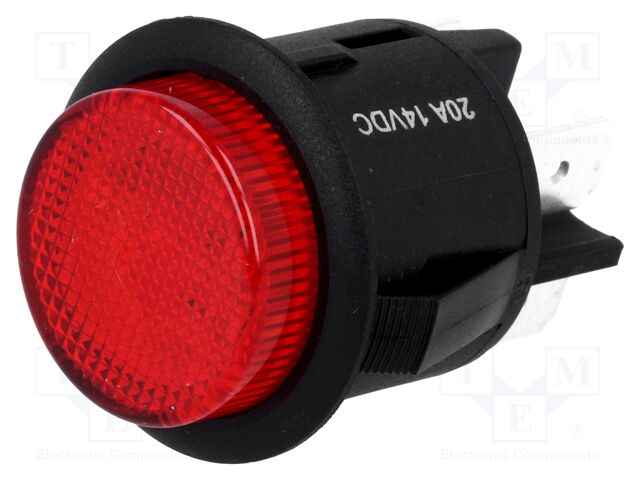

R13-541BL-01-BR-L1 SCI
Виробник: SCI
Category: Standard Switches
Description: Switch: push-button; Pos: 2; DPST-NO; 20A/12VDC; OFF-ON; red; 12VDC
Type of switch: push-button
Number of positions: 2
Contacts configuration: DPST-NO
Switching method: OFF-ON
DC contacts rating @R: 20A / 12V DC
Leads: connectors 6,35mm
Terminals plating: silver plated
Operating temperature: -25...70°C
Mounting hole diameter: Ø25mm
Max. contact resistance:: 50mΩ
Body dimensions: Ø26x27mm
Panel thickness: max. 3mm
Mounting: on panel
Body material: polyamide
AC test voltage: 1.5kV
Illumination: LED
Illumination voltage: 12V DC
Backlight colour: red
Flammability rating: UL94V-2
Actuator colour: red
Button shape: prominent; round
Manufacturer series: R13-541
Stable positions number: 2
Category: Standard Switches
Description: Switch: push-button; Pos: 2; DPST-NO; 20A/12VDC; OFF-ON; red; 12VDC
Type of switch: push-button
Number of positions: 2
Contacts configuration: DPST-NO
Switching method: OFF-ON
DC contacts rating @R: 20A / 12V DC
Leads: connectors 6,35mm
Terminals plating: silver plated
Operating temperature: -25...70°C
Mounting hole diameter: Ø25mm
Max. contact resistance:: 50mΩ
Body dimensions: Ø26x27mm
Panel thickness: max. 3mm
Mounting: on panel
Body material: polyamide
AC test voltage: 1.5kV
Illumination: LED
Illumination voltage: 12V DC
Backlight colour: red
Flammability rating: UL94V-2
Actuator colour: red
Button shape: prominent; round
Manufacturer series: R13-541
Stable positions number: 2
на замовлення 152 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
2+ | 361.09 грн |
5+ | 261.1 грн |
6+ | 147.04 грн |
15+ | 139.48 грн |
Відгуки про товар
Написати відгук
Технічний опис R13-541BL-01-BR-L1 SCI
Category: Standard Switches, Description: Switch: push-button; Pos: 2; DPST-NO; 20A/12VDC; OFF-ON; red; 12VDC, Type of switch: push-button, Number of positions: 2, Contacts configuration: DPST-NO, Switching method: OFF-ON, DC contacts rating @R: 20A / 12V DC, Leads: connectors 6,35mm, Terminals plating: silver plated, Operating temperature: -25...70°C, Mounting hole diameter: Ø25mm, Max. contact resistance:: 50mΩ, Body dimensions: Ø26x27mm, Panel thickness: max. 3mm, Mounting: on panel, Body material: polyamide, AC test voltage: 1.5kV, Illumination: LED, Illumination voltage: 12V DC, Backlight colour: red, Flammability rating: UL94V-2, Actuator colour: red, Button shape: prominent; round, Manufacturer series: R13-541, Stable positions number: 2, кількість в упаковці: 1 шт.
