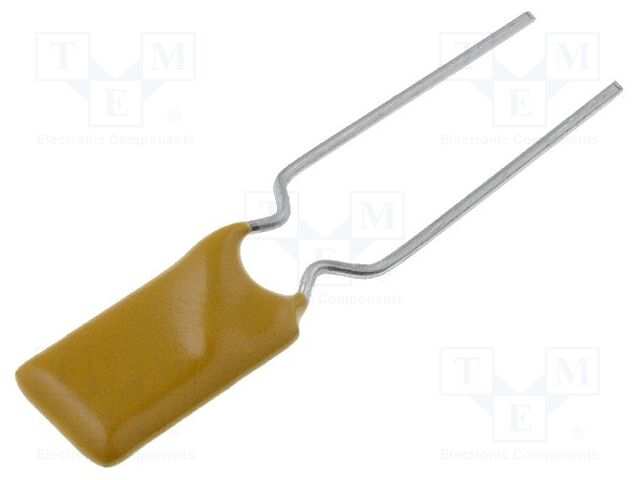

RB110-30 ECE

pVersion=0046&contRep=ZT&docId=E1C04F7952BF43F1A6F5005056AB5A8F&compId=K1008322246.pdf?ci_sign=ec89cf2ef2fb4e5e77925f1d9461e0dc440a1e8e

Виробник: ECE
Category: THT Polymer Fuses
Description: Fuse: PTC polymer; 1.1A; 7.4x14.2mm; THT; 5.1mm; Ø0.51x7.6mm
Type of fuse: PTC polymer
Current rating: 1.1A
Max surge current: 40A
Switched current: 2.2A
Max. voltage: 30V DC
Fuse size: 7.4x14.2mm
Mounting: THT
Power: 0.7W
Min. resistance: 50mΩ
Max resistance: 170mΩ
Terminal pitch: 5.1mm
A dimension: 7.4mm
B dimension: 14.2mm
C dimension: 5.1mm
D dimension: 7.6mm
E dimension: 3mm
F dimension: 0.9mm
Operating temperature: -40...85°C
Leads dimensions: Ø0.51x7.6mm

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис RB110-30 ECE

Category: THT Polymer Fuses, Description: Fuse: PTC polymer; 1.1A; 7.4x14.2mm; THT; 5.1mm; Ø0.51x7.6mm, Type of fuse: PTC polymer, Current rating: 1.1A, Max surge current: 40A, Switched current: 2.2A, Max. voltage: 30V DC, Fuse size: 7.4x14.2mm, Mounting: THT, Power: 0.7W, Min. resistance: 50mΩ, Max resistance: 170mΩ, Terminal pitch: 5.1mm, A dimension: 7.4mm, B dimension: 14.2mm, C dimension: 5.1mm, D dimension: 7.6mm, E dimension: 3mm, F dimension: 0.9mm, Operating temperature: -40...85°C, Leads dimensions: Ø0.51x7.6mm.
