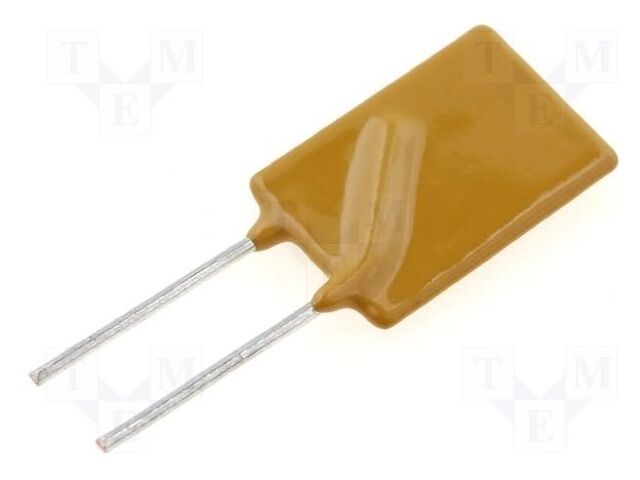

RB700-30 ECE
Виробник: ECECategory: THT Polymer Fuses
Description: Fuse: PTC polymer; 7A; 19.1x26.7mm; THT; 10.2mm; Ø0.81x7.6mm
Type of fuse: PTC polymer
Current rating: 7A
Max surge current: 40A
Switched current: 14A
Max. voltage: 30V DC
Fuse size: 19.1x26.7mm
Mounting: THT
Power: 3.8W
Min. resistance: 5mΩ
Max resistance: 30mΩ
Terminal pitch: 10.2mm
A dimension: 19.1mm
B dimension: 26.7mm
C dimension: 10.2mm
D dimension: 7.6mm
E dimension: 3mm
F dimension: 1.2mm
Operating temperature: -40...85°C
Leads dimensions: Ø0.81x7.6mm
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис RB700-30 ECE
Category: THT Polymer Fuses, Description: Fuse: PTC polymer; 7A; 19.1x26.7mm; THT; 10.2mm; Ø0.81x7.6mm, Type of fuse: PTC polymer, Current rating: 7A, Max surge current: 40A, Switched current: 14A, Max. voltage: 30V DC, Fuse size: 19.1x26.7mm, Mounting: THT, Power: 3.8W, Min. resistance: 5mΩ, Max resistance: 30mΩ, Terminal pitch: 10.2mm, A dimension: 19.1mm, B dimension: 26.7mm, C dimension: 10.2mm, D dimension: 7.6mm, E dimension: 3mm, F dimension: 1.2mm, Operating temperature: -40...85°C, Leads dimensions: Ø0.81x7.6mm, кількість в упаковці: 1 шт.
