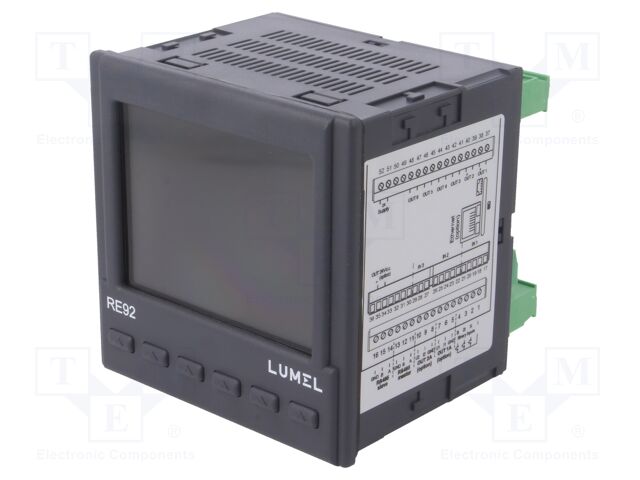

RE92-1101000M0 LUMEL
Виробник: LUMELCategory: Temperature Regulators
Description: Automation module: dual channel regulator; -999÷9999; SPST-NO
Kind of display used: colour; LCD TFT 3,5"
IP rating: IP65 (from the front)
Body dimensions: 96x96x100mm
Display resolution: 320x240
Regulation for output 1: AUTOTUNING; ON-OFF; ON-OFF with hysteresis; PID; PROGRAM
The programming method: PC; rubber keypad
Kind of temperature sensor: Cu100; Ni100; Pt100; Pt500; Pt1000; thermocouple E; thermocouple J; thermocouple K; thermocouple N; thermocouple R; thermocouple S; thermocouple T
Type of automation module: dual channel regulator
Controlled parameter: fluid flow; humidity; pressure; speed; temperature
Mounting: on panel
Kind of output 1: SPST-NO
Controlled parameter range: -999...9999
Operating temperature: 0...50°C
Mounting hole diameter: 92.5x92.5mm
Number of inputs: 3
Supply voltage: 85...253V AC; 85...253V DC
Number of outputs: 6
Output 1 electrical parameters: 250V AC / 2A
Kind of input 1: 0...5/10V; 0/4...20mA; universal
Kind of input 3: 0/4...20mA
Input 1 properties: analogue voltage; current analog; RTD; thermocouple
Manufacturer series: RE92
на замовлення 2 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 45626.80 грн |
Відгуки про товар
Написати відгук
Технічний опис RE92-1101000M0 LUMEL
Category: Temperature Regulators, Description: Automation module: dual channel regulator; -999÷9999; SPST-NO, Kind of display used: colour; LCD TFT 3,5", IP rating: IP65 (from the front), Body dimensions: 96x96x100mm, Display resolution: 320x240, Regulation for output 1: AUTOTUNING; ON-OFF; ON-OFF with hysteresis; PID; PROGRAM, The programming method: PC; rubber keypad, Kind of temperature sensor: Cu100; Ni100; Pt100; Pt500; Pt1000; thermocouple E; thermocouple J; thermocouple K; thermocouple N; thermocouple R; thermocouple S; thermocouple T, Type of automation module: dual channel regulator, Controlled parameter: fluid flow; humidity; pressure; speed; temperature, Mounting: on panel, Kind of output 1: SPST-NO, Controlled parameter range: -999...9999, Operating temperature: 0...50°C, Mounting hole diameter: 92.5x92.5mm, Number of inputs: 3, Supply voltage: 85...253V AC; 85...253V DC, Number of outputs: 6, Output 1 electrical parameters: 250V AC / 2A, Kind of input 1: 0...5/10V; 0/4...20mA; universal, Kind of input 3: 0/4...20mA, Input 1 properties: analogue voltage; current analog; RTD; thermocouple, Manufacturer series: RE92, кількість в упаковці: 1 шт.
