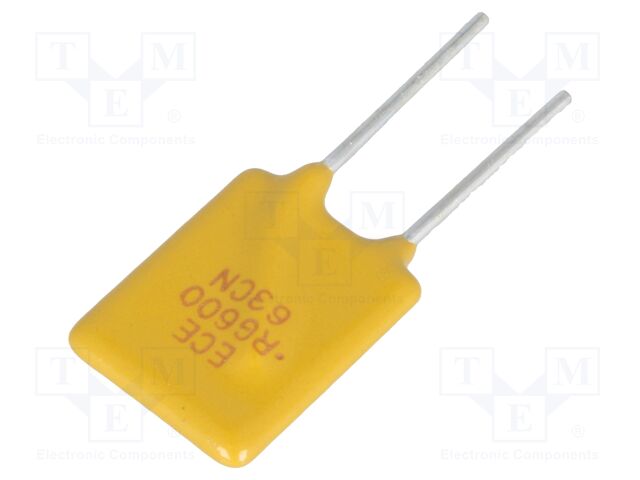

RG600-16 ECE
Виробник: ECECategory: THT Polymer Fuses
Description: Fuse: PTC polymer; 6A; THT; 5.1mm; Ø0.81x7.6mm
Mounting: THT
Type of fuse: PTC polymer
Operating temperature: -40...85°C
Leads dimensions: Ø0.81x7.6mm
F dimension: 1.2mm
E dimension: 3mm
Terminal pitch: 5.1mm
C dimension: 5.1mm
D dimension: 7.6mm
Min. resistance: 9mΩ
A dimension: 10.7mm
B dimension: 17.1mm
Max resistance: 33mΩ
Power: 2.8W
Current rating: 6A
Switched current: 10.2A
Max. voltage: 16V DC
Max surge current: 100A
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис RG600-16 ECE
Category: THT Polymer Fuses, Description: Fuse: PTC polymer; 6A; THT; 5.1mm; Ø0.81x7.6mm, Mounting: THT, Type of fuse: PTC polymer, Operating temperature: -40...85°C, Leads dimensions: Ø0.81x7.6mm, F dimension: 1.2mm, E dimension: 3mm, Terminal pitch: 5.1mm, C dimension: 5.1mm, D dimension: 7.6mm, Min. resistance: 9mΩ, A dimension: 10.7mm, B dimension: 17.1mm, Max resistance: 33mΩ, Power: 2.8W, Current rating: 6A, Switched current: 10.2A, Max. voltage: 16V DC, Max surge current: 100A, кількість в упаковці: 1 шт.
