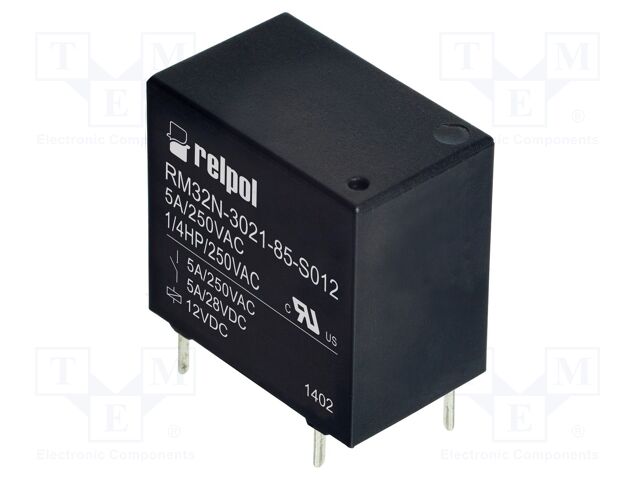

RM32N-3021-85-S012 RELPOL

Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; RM32N
IP rating: IP64
Relay variant: miniature; sensitive
Mounting: PCB
Contacts configuration: SPST-NO
Operating temperature: -40...70°C
Terminal pitch: 7.62mm
Release time: 5ms
Operate time: 8ms
Body dimensions: 18.8x10.6x15.3mm
Contact resistance: 100mΩ
Coil power consumption: 200mW
Rated coil voltage: 12V DC
Coil voltage min.: 9V DC
Contact current max.: 5A
DC contacts rating @R: 5A / 28V DC
AC contacts rating @R: 5A / 250V AC
Coil voltage max.: 15.6V DC
Switched voltage: max. 28V DC; max. 277V AC
Coil resistance: 720Ω
Electrical life: 100000 cycles
Mechanical durability: 100000000 cycles
OEM number: 2615015
Contact material: AgSnO2
Manufacturer series: RM32N
Type of relay: electromagnetic
на замовлення 519 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
4+ | 137.56 грн |
5+ | 120.59 грн |
11+ | 92.03 грн |
28+ | 87.27 грн |
500+ | 83.31 грн |
Відгуки про товар
Написати відгук
Технічний опис RM32N-3021-85-S012 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; RM32N, IP rating: IP64, Relay variant: miniature; sensitive, Mounting: PCB, Contacts configuration: SPST-NO, Operating temperature: -40...70°C, Terminal pitch: 7.62mm, Release time: 5ms, Operate time: 8ms, Body dimensions: 18.8x10.6x15.3mm, Contact resistance: 100mΩ, Coil power consumption: 200mW, Rated coil voltage: 12V DC, Coil voltage min.: 9V DC, Contact current max.: 5A, DC contacts rating @R: 5A / 28V DC, AC contacts rating @R: 5A / 250V AC, Coil voltage max.: 15.6V DC, Switched voltage: max. 28V DC; max. 277V AC, Coil resistance: 720Ω, Electrical life: 100000 cycles, Mechanical durability: 100000000 cycles, OEM number: 2615015, Contact material: AgSnO2, Manufacturer series: RM32N, Type of relay: electromagnetic, кількість в упаковці: 1 шт.
Інші пропозиції RM32N-3021-85-S012 за ціною від 99.97 грн до 165.07 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
RM32N-3021-85-S012 | Виробник : RELPOL |
![]() Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A; 5A/250VAC; RM32N IP rating: IP64 Relay variant: miniature; sensitive Mounting: PCB Contacts configuration: SPST-NO Operating temperature: -40...70°C Terminal pitch: 7.62mm Release time: 5ms Operate time: 8ms Body dimensions: 18.8x10.6x15.3mm Contact resistance: 100mΩ Coil power consumption: 200mW Rated coil voltage: 12V DC Coil voltage min.: 9V DC Contact current max.: 5A DC contacts rating @R: 5A / 28V DC AC contacts rating @R: 5A / 250V AC Coil voltage max.: 15.6V DC Switched voltage: max. 28V DC; max. 277V AC Coil resistance: 720Ω Electrical life: 100000 cycles Mechanical durability: 100000000 cycles OEM number: 2615015 Contact material: AgSnO2 Manufacturer series: RM32N Type of relay: electromagnetic кількість в упаковці: 1 шт |
на замовлення 519 шт: термін постачання 14-21 дні (днів) |
|
