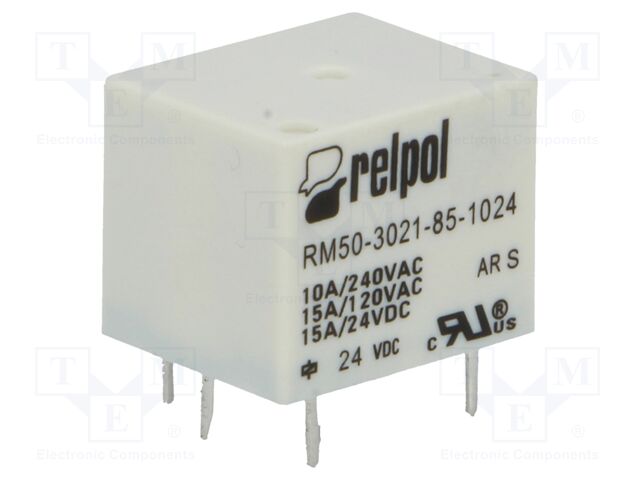

RM50-3021-85-1024 RELPOL
Виробник: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 15A; 10A/240VAC
Type of relay: electromagnetic
Switched voltage: max. 24V DC; max. 277V AC
Manufacturer series: RM50
Relay variant: miniature
Mounting: PCB
Body dimensions: 19x15.4x15.5mm
IP rating: IP64
OEM number: 2611665
Operating temperature: -30...55°C
Operate time: 10ms
Release time: 5ms
Terminal pitch: 2mm
Contact resistance: 100mΩ
Coil power consumption: 360mW
Contact material: AgSnO2
Contacts configuration: SPST-NO
Contact current max.: 15A
DC contacts rating @R: 15A / 24V DC
AC contacts rating @R: 10A / 240V AC
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Coil voltage max.: 31.2V DC
Coil resistance: 1.6kΩ
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 15A; 10A/240VAC
Type of relay: electromagnetic
Switched voltage: max. 24V DC; max. 277V AC
Manufacturer series: RM50
Relay variant: miniature
Mounting: PCB
Body dimensions: 19x15.4x15.5mm
IP rating: IP64
OEM number: 2611665
Operating temperature: -30...55°C
Operate time: 10ms
Release time: 5ms
Terminal pitch: 2mm
Contact resistance: 100mΩ
Coil power consumption: 360mW
Contact material: AgSnO2
Contacts configuration: SPST-NO
Contact current max.: 15A
DC contacts rating @R: 15A / 24V DC
AC contacts rating @R: 10A / 240V AC
Coil voltage min.: 18V DC
Rated coil voltage: 24V DC
Coil voltage max.: 31.2V DC
Coil resistance: 1.6kΩ
на замовлення 438 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 183.73 грн |
| 5+ | 165.86 грн |
| 7+ | 133.48 грн |
| 20+ | 126.37 грн |
| 100+ | 120.84 грн |
Відгуки про товар
Написати відгук
Технічний опис RM50-3021-85-1024 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 15A; 10A/240VAC, Type of relay: electromagnetic, Switched voltage: max. 24V DC; max. 277V AC, Manufacturer series: RM50, Relay variant: miniature, Mounting: PCB, Body dimensions: 19x15.4x15.5mm, IP rating: IP64, OEM number: 2611665, Operating temperature: -30...55°C, Operate time: 10ms, Release time: 5ms, Terminal pitch: 2mm, Contact resistance: 100mΩ, Coil power consumption: 360mW, Contact material: AgSnO2, Contacts configuration: SPST-NO, Contact current max.: 15A, DC contacts rating @R: 15A / 24V DC, AC contacts rating @R: 10A / 240V AC, Coil voltage min.: 18V DC, Rated coil voltage: 24V DC, Coil voltage max.: 31.2V DC, Coil resistance: 1.6kΩ, кількість в упаковці: 1 шт.
