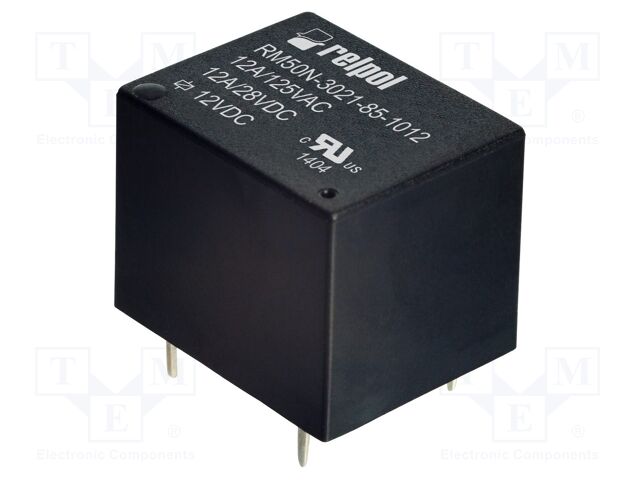

RM50N-3021-85-1012 RELPOL

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 12A; 12A/125VAC, Manufacturer series: RM50N, AC contacts rating @R: 12A / 125V AC, DC contacts rating @R: 12A / 28V DC, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 12V DC, Coil voltage min.: 9V DC, Coil voltage max.: 15.6V DC, Coil power consumption: 360mW, Operate time: 10ms, Release time: 5ms, Switched voltage: max. 28V DC; max. 277V AC, Contact current max.: 12A, Contact resistance: 100mΩ, Contacts configuration: SPST-NO, Coil resistance: 400Ω, Contact material: AgSnO2, Body dimensions: 19x15.6x15.3mm, IP rating: IP64, Operating temperature: -30...55°C, Terminal pitch: 2mm, OEM number: 2614658, Mounting: PCB, кількість в упаковці: 1 шт.
