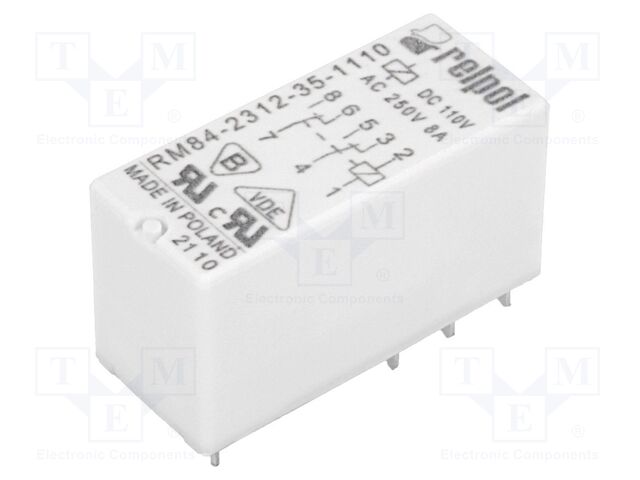

RM84-2312-35-1110 RELPOL

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 110VDC; 8A; 8A/250VAC; RM84, Related items: GD50; GZ80; GZM80; GZM80-BK; GZT80; PW80, Manufacturer series: RM84, IP rating: IP67, Relay variant: miniature, Mounting: PCB, Body colour: white, Operating temperature: -40...85°C, Release time: 3ms, Terminal pitch: 5mm, Operate time: 7ms, Height: 15.7mm, Body dimensions: 29x12.7x15.7mm, Contact resistance: 100mΩ, Coil power consumption: 480mW, Number of pins: 8, Contact current max.: 8A, DC contacts rating @R: 8A / 24V DC, AC contacts rating @R: 8A / 250V AC, Coil voltage min.: 77V DC, Rated coil voltage: 110V DC, Coil voltage max.: 280V DC, Switched voltage: max. 250V DC; max. 440V AC, Coil resistance: 25.2kΩ, Mechanical durability: 30000000 cycles, Contact material: AgNi/Au 5μm, Contacts configuration: DPDT, Type of relay: electromagnetic.
