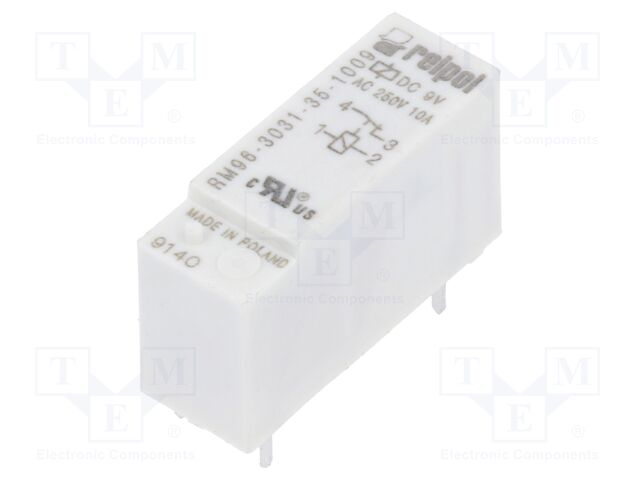

RM96-3031-35-1009 RELPOL

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NC; Ucoil: 9VDC; 8A; 8A/250VAC; RM96, Type of relay: electromagnetic, Contacts configuration: SPST-NC, Rated coil voltage: 9V DC, Contact current max.: 8A, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 8A / 24V DC, Manufacturer series: RM96, Switched voltage: max. 120V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 360Ω, Coil voltage min.: 6.3V DC, Coil voltage max.: 22V DC, Operate time: 10ms, Body dimensions: 28x10x16.2mm, Release time: 5ms, Coil power consumption: 300mW, IP rating: IP67, Contact resistance: 100mΩ, Contact material: AgSnO2, Operating temperature: -40...80°C, Mechanical durability: 20000000 cycles, Terminal pitch: 5mm, Height: 16.2mm, Number of pins: 4, OEM number: 852870.
