Продукція > RELPOL > RMP84-2012-25-1024-WT

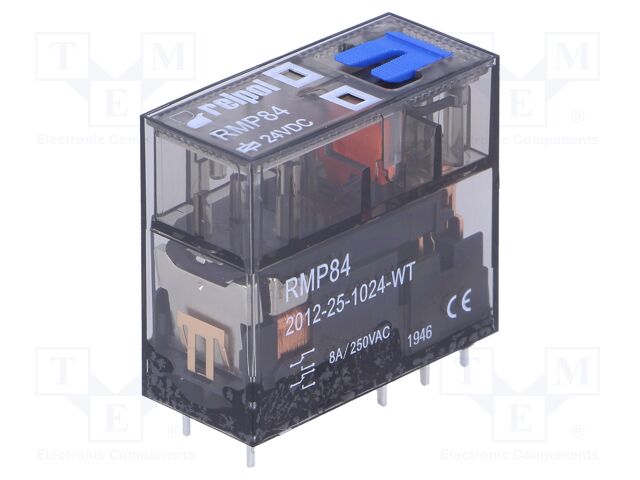

RMP84-2012-25-1024-WT RELPOL

Name: RMP84-2012-25-1024-WT
Brand: RELPOL
SKU: 460117870-1
Price: 636.92 UAH
Availability: BackOrder

pVersion=0046&contRep=ZT&docId=8954D222ECA01EDDB3904B8F2BF340D4&compId=RMP84_EN.pdf?ci_sign=dd2f9af2b2023fa6925fe16751b15c1e5f22a03d

Виробник: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/24VDC
Number of pins: 8
Contact material: AgNi
Operating temperature: -40...70°C
Insulation voltage: 5kV
Coil resistance: 1.44kΩ
Contacts configuration: DPDT
AC contacts rating @R: 8A / 250V AC
DC contacts rating @R: 8A / 24V DC
Type of relay: electromagnetic
Relay variant: miniature
Rated coil voltage: 24V DC
Coil voltage min.: 16.8V DC
Coil voltage max.: 36V DC
Coil power consumption: 480mW
Operate time: 15ms
Release time: 8ms
Switched voltage: max. 250V DC; max. 440V AC
Contact current max.: 8A
Contact resistance: 100mΩ
Related items: GD50; GZF80; GZMB80
Manufacturer series: RMP84
Mounting: PCB
Mechanical durability: 5000000 cycles
Terminal pitch: 5.04mm
Body colour: transparent tinted
IP rating: IP40
Body dimensions: 29x13x25.5mm
Height: 25.5mm
кількість в упаковці: 1 шт

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис RMP84-2012-25-1024-WT RELPOL

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/24VDC, Number of pins: 8, Contact material: AgNi, Operating temperature: -40...70°C, Insulation voltage: 5kV, Coil resistance: 1.44kΩ, Contacts configuration: DPDT, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 8A / 24V DC, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 24V DC, Coil voltage min.: 16.8V DC, Coil voltage max.: 36V DC, Coil power consumption: 480mW, Operate time: 15ms, Release time: 8ms, Switched voltage: max. 250V DC; max. 440V AC, Contact current max.: 8A, Contact resistance: 100mΩ, Related items: GD50; GZF80; GZMB80, Manufacturer series: RMP84, Mounting: PCB, Mechanical durability: 5000000 cycles, Terminal pitch: 5.04mm, Body colour: transparent tinted, IP rating: IP40, Body dimensions: 29x13x25.5mm, Height: 25.5mm, кількість в упаковці: 1 шт.
