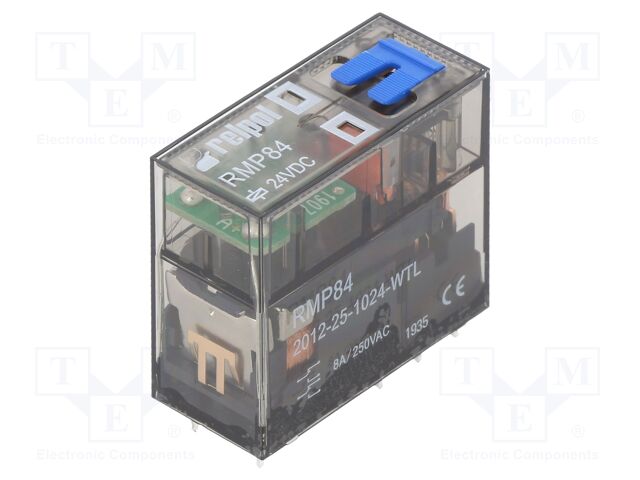

RMP84-2012-25-1024-WTL RELPOL

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A; 8A/250VAC; 8A/24VDC, Number of pins: 8, Contact material: AgNi, Operating temperature: -40...70°C, Insulation voltage: 5kV, Coil resistance: 1.44kΩ, Contacts configuration: DPDT, AC contacts rating @R: 8A / 250V AC, DC contacts rating @R: 8A / 24V DC, Type of relay: electromagnetic, Relay variant: miniature, Rated coil voltage: 24V DC, Coil voltage min.: 16.8V DC, Coil voltage max.: 36V DC, Coil power consumption: 480mW, Operate time: 15ms, Release time: 8ms, Switched voltage: max. 250V DC; max. 440V AC, Contact current max.: 8A, Contact resistance: 100mΩ, Related items: GD50; GZF80; GZMB80, Manufacturer series: RMP84, Mounting: PCB, Mechanical durability: 5000000 cycles, Terminal pitch: 5.04mm, Body colour: transparent tinted, IP rating: IP40, Body dimensions: 29x13x25.5mm, Height: 25.5mm, кількість в упаковці: 1 шт.
