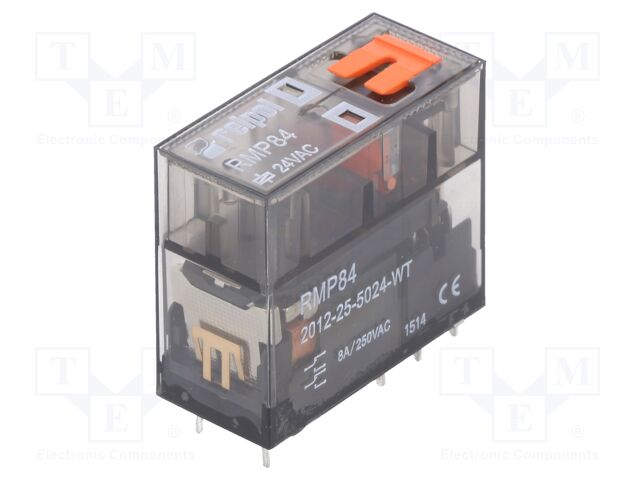

RMP84-2012-25-5024-WT RELPOL
Виробник: RELPOLCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A; 8A/250VAC; 8A/24VDC
Type of relay: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 24V AC
Contact current max.: 8A
Mounting: PCB
Relay variant: miniature
Contact material: AgNi
Body dimensions: 29x13x25.5mm
Coil resistance: 350Ω
IP rating: IP40
Body colour: transparent tinted
Operating temperature: -40...70°C
Release time: 8ms
Terminal pitch: 5.04mm
Operate time: 15ms
Height: 25.5mm
Contact resistance: 100mΩ
Coil power consumption: 0.75VA
DC contacts rating @R: 8A / 24V DC
Coil voltage min.: 18V AC
Number of pins: 8
AC contacts rating @R: 8A / 250V AC
Coil voltage max.: 26.4V AC
Switched voltage: max. 250V DC; max. 440V AC
Insulation voltage: 5kV
Mechanical durability: 1000000 cycles
Manufacturer series: RMP84
Related items: GD50; GZF80; GZMB80
на замовлення 33 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 446.11 грн |
| 3+ | 379.66 грн |
| 7+ | 359.22 грн |
Відгуки про товар
Написати відгук
Технічний опис RMP84-2012-25-5024-WT RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A; 8A/250VAC; 8A/24VDC, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 24V AC, Contact current max.: 8A, Mounting: PCB, Relay variant: miniature, Contact material: AgNi, Body dimensions: 29x13x25.5mm, Coil resistance: 350Ω, IP rating: IP40, Body colour: transparent tinted, Operating temperature: -40...70°C, Release time: 8ms, Terminal pitch: 5.04mm, Operate time: 15ms, Height: 25.5mm, Contact resistance: 100mΩ, Coil power consumption: 0.75VA, DC contacts rating @R: 8A / 24V DC, Coil voltage min.: 18V AC, Number of pins: 8, AC contacts rating @R: 8A / 250V AC, Coil voltage max.: 26.4V AC, Switched voltage: max. 250V DC; max. 440V AC, Insulation voltage: 5kV, Mechanical durability: 1000000 cycles, Manufacturer series: RMP84, Related items: GD50; GZF80; GZMB80, кількість в упаковці: 1 шт.
