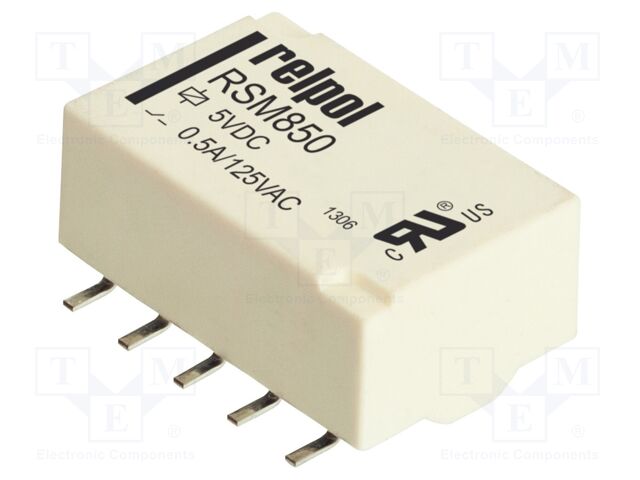

RSM850-6112-8M-1005 RELPOL
Виробник: RELPOL
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/125VAC; SMD
Mounting: SMD
Contact material: AgPd/Au 0,2μm
Terminal pitch: 2.54mm
Operating temperature: -40...85°C
DC contacts rating @R: 2A / 30V DC
Electrical life: 100000 cycles
Type of relay: electromagnetic
Relay variant: monostable; subminiature
Relay series: RSM850
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
Coil voltage max.: 12.5V DC
Coil power consumption: 140mW
Operate time: 3ms
Release time: 3ms
Switched voltage: max. 30V DC; max. 250V AC
Contact current max.: 2A
Contact resistance: 50mΩ
OEM number: 2611717
Mechanical durability: 1000000000 cycles
IP rating: IP64
Body dimensions: 14.3x9.3x5.4mm
Coil resistance: 178Ω
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/125VAC; SMD
Mounting: SMD
Contact material: AgPd/Au 0,2μm
Terminal pitch: 2.54mm
Operating temperature: -40...85°C
DC contacts rating @R: 2A / 30V DC
Electrical life: 100000 cycles
Type of relay: electromagnetic
Relay variant: monostable; subminiature
Relay series: RSM850
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
Coil voltage max.: 12.5V DC
Coil power consumption: 140mW
Operate time: 3ms
Release time: 3ms
Switched voltage: max. 30V DC; max. 250V AC
Contact current max.: 2A
Contact resistance: 50mΩ
OEM number: 2611717
Mechanical durability: 1000000000 cycles
IP rating: IP64
Body dimensions: 14.3x9.3x5.4mm
Coil resistance: 178Ω
Contacts configuration: DPDT
AC contacts rating @R: 0.5A / 125V AC
на замовлення 412 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
2+ | 235.16 грн |
5+ | 196.81 грн |
6+ | 150.91 грн |
15+ | 142.56 грн |
Відгуки про товар
Написати відгук
Технічний опис RSM850-6112-8M-1005 RELPOL
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; 2A; 0.5A/125VAC; SMD, Mounting: SMD, Contact material: AgPd/Au 0,2μm, Terminal pitch: 2.54mm, Operating temperature: -40...85°C, DC contacts rating @R: 2A / 30V DC, Electrical life: 100000 cycles, Type of relay: electromagnetic, Relay variant: monostable; subminiature, Relay series: RSM850, Rated coil voltage: 5V DC, Coil voltage min.: 3.75V DC, Coil voltage max.: 12.5V DC, Coil power consumption: 140mW, Operate time: 3ms, Release time: 3ms, Switched voltage: max. 30V DC; max. 250V AC, Contact current max.: 2A, Contact resistance: 50mΩ, OEM number: 2611717, Mechanical durability: 1000000000 cycles, IP rating: IP64, Body dimensions: 14.3x9.3x5.4mm, Coil resistance: 178Ω, Contacts configuration: DPDT, AC contacts rating @R: 0.5A / 125V AC, кількість в упаковці: 1 шт.
