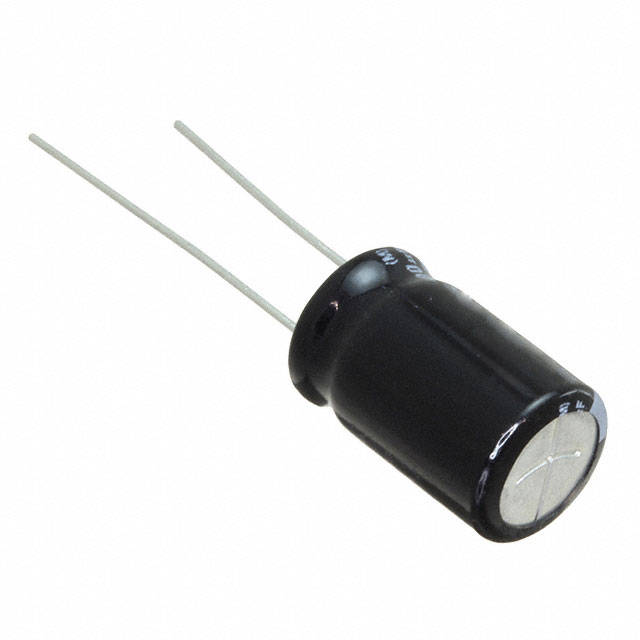

RSRJ3101M4EF12300T Elna America
Виробник: Elna AmericaDescription: ALUM ELECT CAP
Tolerance: ±20%
Packaging: Bulk
Package / Case: Radial, Can
Size / Dimension: 0.394" Dia (10.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 105°C
Applications: General Purpose
Lead Spacing: 0.197" (5.00mm)
ESR (Equivalent Series Resistance): 1.49Ohm @ 120Hz
Lifetime @ Temp.: 2000 Hrs @ 105°C
Height - Seated (Max): 0.492" (12.50mm)
Capacitance: 100 µF
Voltage - Rated: 63 V
Impedance: 650 mOhms
Ripple Current @ Low Frequency: 276.5 mA @ 120 Hz
Ripple Current @ High Frequency: 395 mA @ 100 kHz
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис RSRJ3101M4EF12300T Elna America
Description: ALUM ELECT CAP, Tolerance: ±20%, Packaging: Bulk, Package / Case: Radial, Can, Size / Dimension: 0.394" Dia (10.00mm), Polarization: Polar, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 105°C, Applications: General Purpose, Lead Spacing: 0.197" (5.00mm), ESR (Equivalent Series Resistance): 1.49Ohm @ 120Hz, Lifetime @ Temp.: 2000 Hrs @ 105°C, Height - Seated (Max): 0.492" (12.50mm), Capacitance: 100 µF, Voltage - Rated: 63 V, Impedance: 650 mOhms, Ripple Current @ Low Frequency: 276.5 mA @ 120 Hz, Ripple Current @ High Frequency: 395 mA @ 100 kHz.
