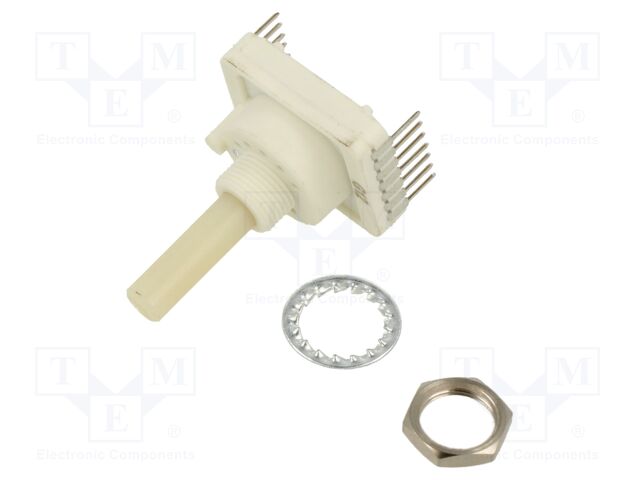

RTAP32S06M25NS C&K
Виробник: C&K
Category: Encoding Switches
Description: Encoding switch; Pos: 6; THT; Rcont max: 150mΩ; Rinsul min: 1GΩ
Type of switch: encoding switch
Number of positions: 6
Stable positions number: 6
Mounting: THT
Leads: for PCB
Body dimensions: 25.8x22x18.6mm
Min. insulation resistance: 1GΩ
Max. contact resistance:: 150mΩ
Manufacturer series: RTA
Electrical life: 10000 cycles
Terminal pitch: 2.5mm
Operating temperature: -20...70°C
Contact material: brass
Contact plating: nickel plated; silver plated
AC contacts rating @R: 0.15A / 60V AC
Відгуки про товар
Написати відгук
Технічний опис RTAP32S06M25NS C&K
Description: SWITCH ROTARY 6POS 150MA 60V, Mounting Type: Panel Mount, Through Hole, Current Rating (Amps): 150mA (AC/DC), Contact Finish: Silver, Packaging: Tray, Voltage Rating - DC: 60 V, Voltage Rating - AC: 60 V, Part Status: Active, Depth Behind Panel: 12.60mm, Index Stops: Fixed, Contact Timing: Non-Shorting (BBM), Contact Material: Brass, Circuit per Deck: DP6T, Number of Poles per Deck: 2, Number of Decks: 1, Angle of Throw: 30°, Actuator Type: Round (6mm Dia), Slotted, Actuator Length: 25.00mm, Termination Style: PC Pin, Number of Positions: 6.
Інші пропозиції RTAP32S06M25NS за ціною від 657.65 грн до 1293.05 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RTAP32S06M25NS | C&K |
Description: SWITCH ROTARY 6POS 150MA 60V Mounting Type: Panel Mount, Through Hole Current Rating (Amps): 150mA (AC/DC) Contact Finish: Silver Packaging: Tray Voltage Rating - DC: 60 V Voltage Rating - AC: 60 V Part Status: Active Depth Behind Panel: 12.60mm Index Stops: Fixed Contact Timing: Non-Shorting (BBM) Contact Material: Brass Circuit per Deck: DP6T Number of Poles per Deck: 2 Number of Decks: 1 Angle of Throw: 30° Actuator Type: Round (6mm Dia), Slotted Actuator Length: 25.00mm Termination Style: PC Pin Number of Positions: 6 |
на замовлення 465 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
 |
RTAP32S06M25NS | C&K |
Coded Rotary Switches Rotary |
на замовлення 753 шт: термін постачання 21-30 дні (днів) |
|
| RTAP32S06M25NS |
|
Виробник: C&K
Description: SWITCH ROTARY 6POS 150MA 60V
Mounting Type: Panel Mount, Through Hole
Current Rating (Amps): 150mA (AC/DC)
Contact Finish: Silver
Packaging: Tray
Voltage Rating - DC: 60 V
Voltage Rating - AC: 60 V
Part Status: Active
Depth Behind Panel: 12.60mm
Index Stops: Fixed
Contact Timing: Non-Shorting (BBM)
Contact Material: Brass
Circuit per Deck: DP6T
Number of Poles per Deck: 2
Number of Decks: 1
Angle of Throw: 30°
Actuator Type: Round (6mm Dia), Slotted
Actuator Length: 25.00mm
Termination Style: PC Pin
Number of Positions: 6
Description: SWITCH ROTARY 6POS 150MA 60V
Mounting Type: Panel Mount, Through Hole
Current Rating (Amps): 150mA (AC/DC)
Contact Finish: Silver
Packaging: Tray
Voltage Rating - DC: 60 V
Voltage Rating - AC: 60 V
Part Status: Active
Depth Behind Panel: 12.60mm
Index Stops: Fixed
Contact Timing: Non-Shorting (BBM)
Contact Material: Brass
Circuit per Deck: DP6T
Number of Poles per Deck: 2
Number of Decks: 1
Angle of Throw: 30°
Actuator Type: Round (6mm Dia), Slotted
Actuator Length: 25.00mm
Termination Style: PC Pin
Number of Positions: 6
на замовлення 465 шт:
термін постачання 21-31 дні (днів)| Кількість | Ціна |
|---|---|
| 1+ | 1270.61 грн |
| 5+ | 1050.15 грн |
| 10+ | 983.41 грн |
| 48+ | 794.70 грн |
| 96+ | 743.54 грн |
| 144+ | 715.04 грн |
| 288+ | 657.65 грн |
| RTAP32S06M25NS |
|
Виробник: C&K
Coded Rotary Switches Rotary
Coded Rotary Switches Rotary
на замовлення 753 шт:
термін постачання 21-30 дні (днів)| Кількість | Ціна |
|---|---|
| 1+ | 1293.05 грн |
